PRV
PRV 8 inch 8 Ohm ALTO Mid Range Speaker PRV-8MR450A
$49.91
8″ 8 Ohm ALTO Series midrange, 450 W RMS and 96 dB, only 3.21″ deep.
RMS Power450W
Sensitivity96dB
Size1.5in
01 Overview
The details
Product Overview
The PRV 8MR450A is an efficient ALTO Series midrange for home, car and pro audio builds. A dual-layer CCAW voice coil and a copper sleeve on the pole piece keep inductance and distortion low for clean transients and extended highs, and the triple-roll cloth surround keeps response smooth.
Key Features
- 450 W RMS continuous program power
- 96 dB sensitivity (2.83V/1m)
- Copper-sleeved pole piece for lower distortion
- Triple-roll cloth surround
- Compact 3.21" mounting depth
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
450W
Continuous rating
Sensitivity 02
96dB
Efficiency
Size 03
1.5in
Nominal
Weight 04
4.63lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 450 W
- Recommended Hi Pass Crossover
- 140 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 96 dB
- Frequency Response
- 80 – 9,500 Hz
- Voice Coil Diameter
- 1.5" (38 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Surround
- Triple-roll cloth
- Magnet
- Ferrite
- Frame Material
- Stamped steel

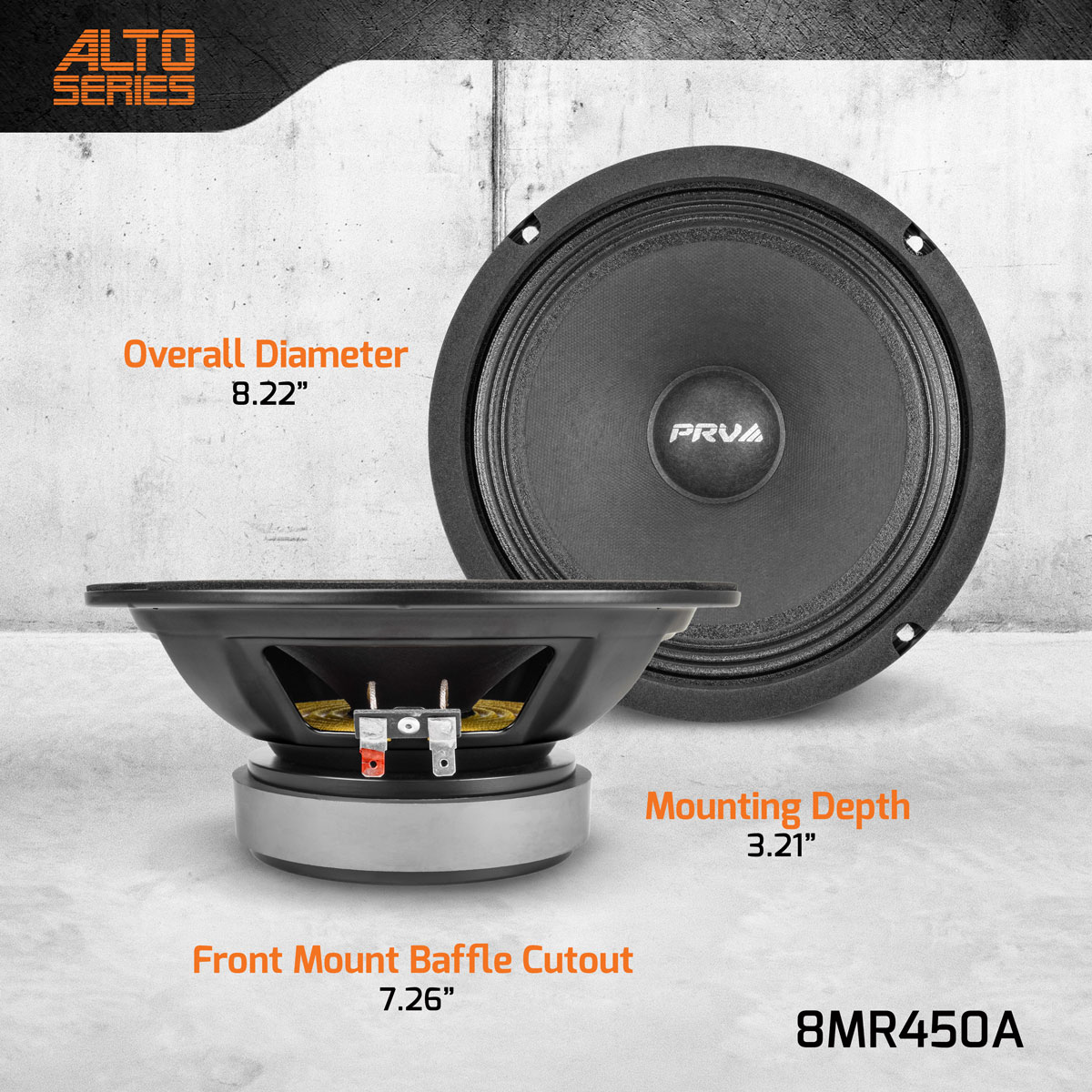

- Mounting Depth
- 3.21" (81.5 mm)
- Cutout
- 7.26" (184.5 mm)
- Overall Dimensions
- 8.22" (209 mm) dia., 3.50" (89 mm) deep
- Net Weight
- 4.63 lbs (2.1 kg)
- Weight
- 5.15 lbs
- Dimensions
- 9 × 9 × 4.75 in
03 Reviews (0)
Reviews (0)
You must be logged in to post a review.
04 Complete the build
Shop all Power it right
Related products
-

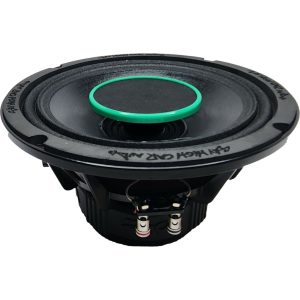

Sky High Car Audio8 inch HD8.4E Hybrid Midrange Coaxial Speaker 500w 4ohm(Single)
