PRV 8 inch 8 Ohm X Series Mid Range Speaker PRV-8MR600X
$89.91

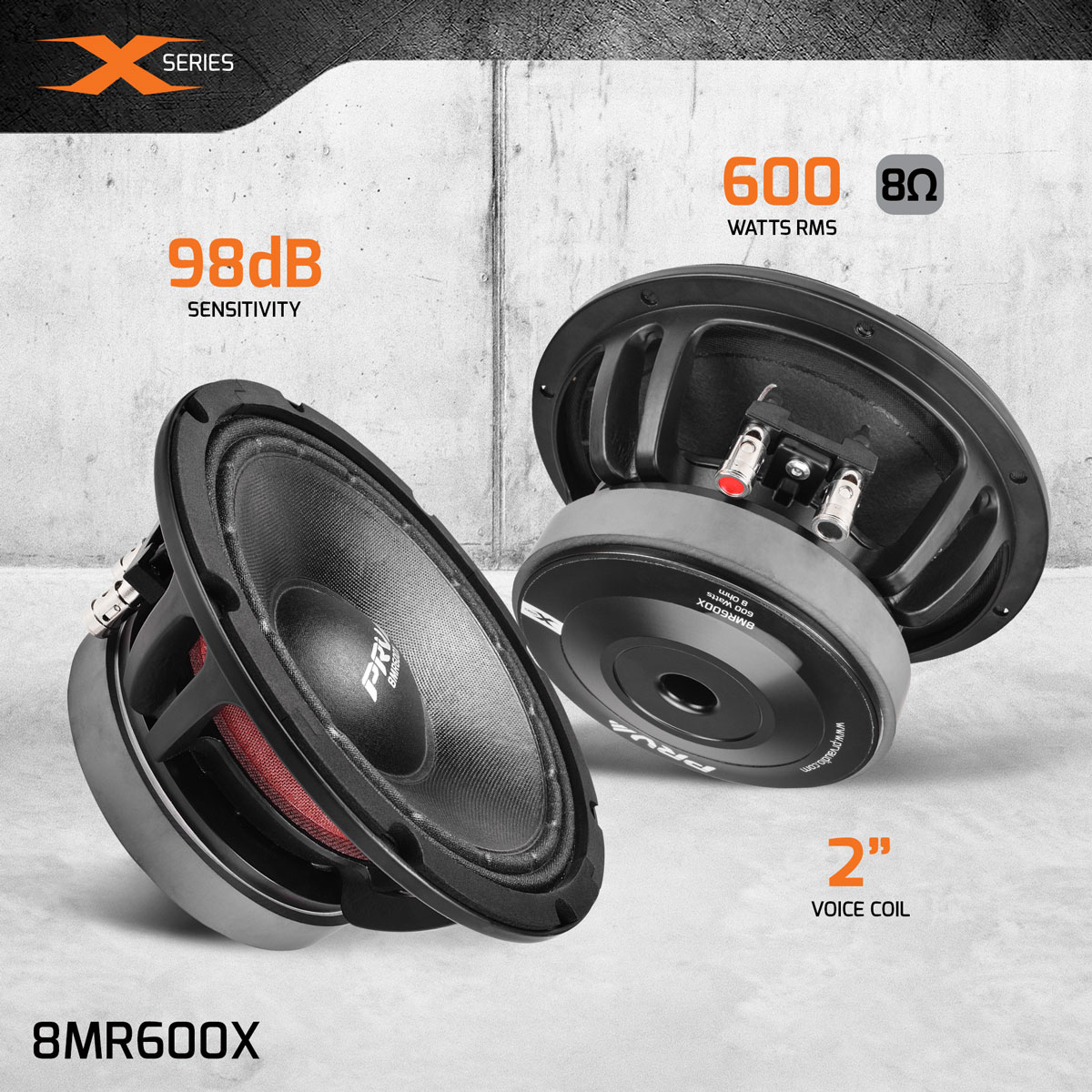

8″ 8 Ohm X Series midrange, 600 W RMS and 98 dB, with a 2″ dual-layer voice coil.
RMS Power600W
Sensitivity98dB
Size2in
01 Overview
The details
Product Overview
The PRV 8MR600X is a high-output X Series midrange. A ferrite motor with a ventilated basket and voice coil gap reduces power compression, and the 2" dual-layer CCAW voice coil with a long winding supports high excursion with low distortion. The composite cone resists breakup, and response reaches 8.5 kHz for an easy match to a super tweeter.
Key Features
- 600 W RMS continuous program power
- 98 dB sensitivity (2.83V/1m)
- 2" dual-layer CCAW voice coil on a polyimide former
- Ventilated basket and voice coil gap
- Composite cone with double-roll dimple suspension
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
600W
Continuous rating
Sensitivity 02
98dB
Efficiency
Size 03
2in
Nominal
Weight 04
7.04lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 600 W
- Recommended Hi Pass Crossover
- 145 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 98 dB
- Frequency Response
- 85 – 8,500 Hz
- Voice Coil Diameter
- 2" (51 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Polyimide
- Magnet
- Ferrite
- Frame Material
- Die-cast aluminum

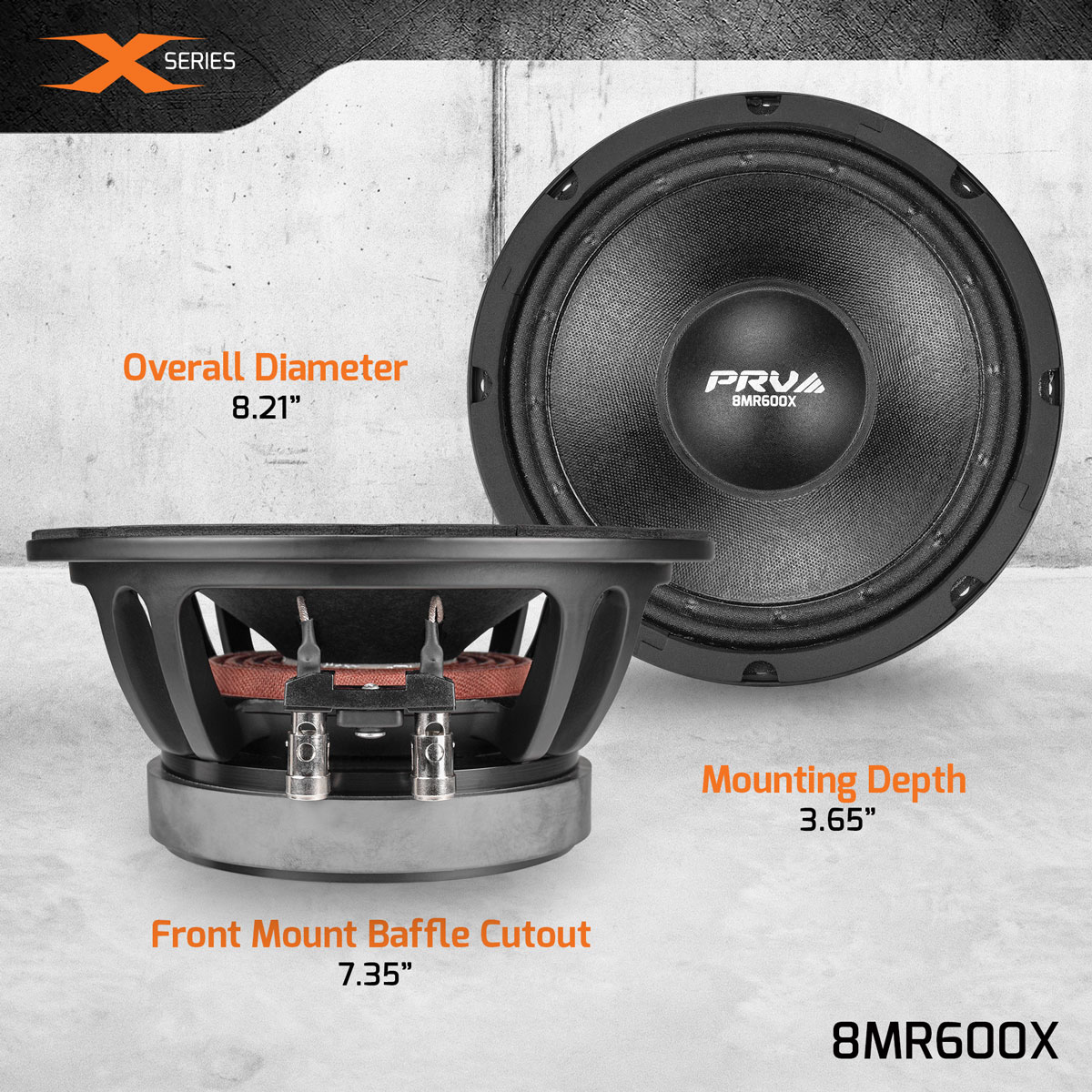

- Mounting Depth
- 3.65" (92.5 mm)
- Cutout
- 7.35" (186.5 mm)
- Overall Dimensions
- 8.21" (208.5 mm) dia., 4.03" (102.5 mm) deep
- Net Weight
- 7.04 lbs (3.20 kg)
- Weight
- 8 lbs
- Dimensions
- 9 × 9 × 5 in
