Product Overview
The PRV 8MR600X-NDY combines very high sensitivity with a light neodymium halo motor for pro audio and car audio competition use. The motor improves heat dissipation for less power compression, and the dual-layer CCAW voice coil keeps inductance low for wide directivity and strong upper-midrange output.
Key Features
- 600 W RMS continuous program power
- 98.5 dB sensitivity (2.83V/1m)
- Halo neodymium motor
- 2" dual-layer CCAW voice coil on a Kapton former
- Coated woven surround
- Die-cast aluminum frame
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
600W
Continuous rating
Sensitivity 02
98.5dB
Efficiency
Size 03
2in
Nominal
Weight 04
5.00lb
Per unit
- Impedance
- 8 Ohm
- Continuous Program Power (RMS)
- 600 W
- Recommended Hi Pass Crossover
- 145 Hz, 12 dB/octave
- Sensitivity (2.83V at 1m)
- 98.5 dB
- Frequency Response
- 95 – 10,500 Hz
- Voice Coil Diameter
- 2" (50 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Magnet
- Neodymium
- Frame Material
- Die-cast aluminum

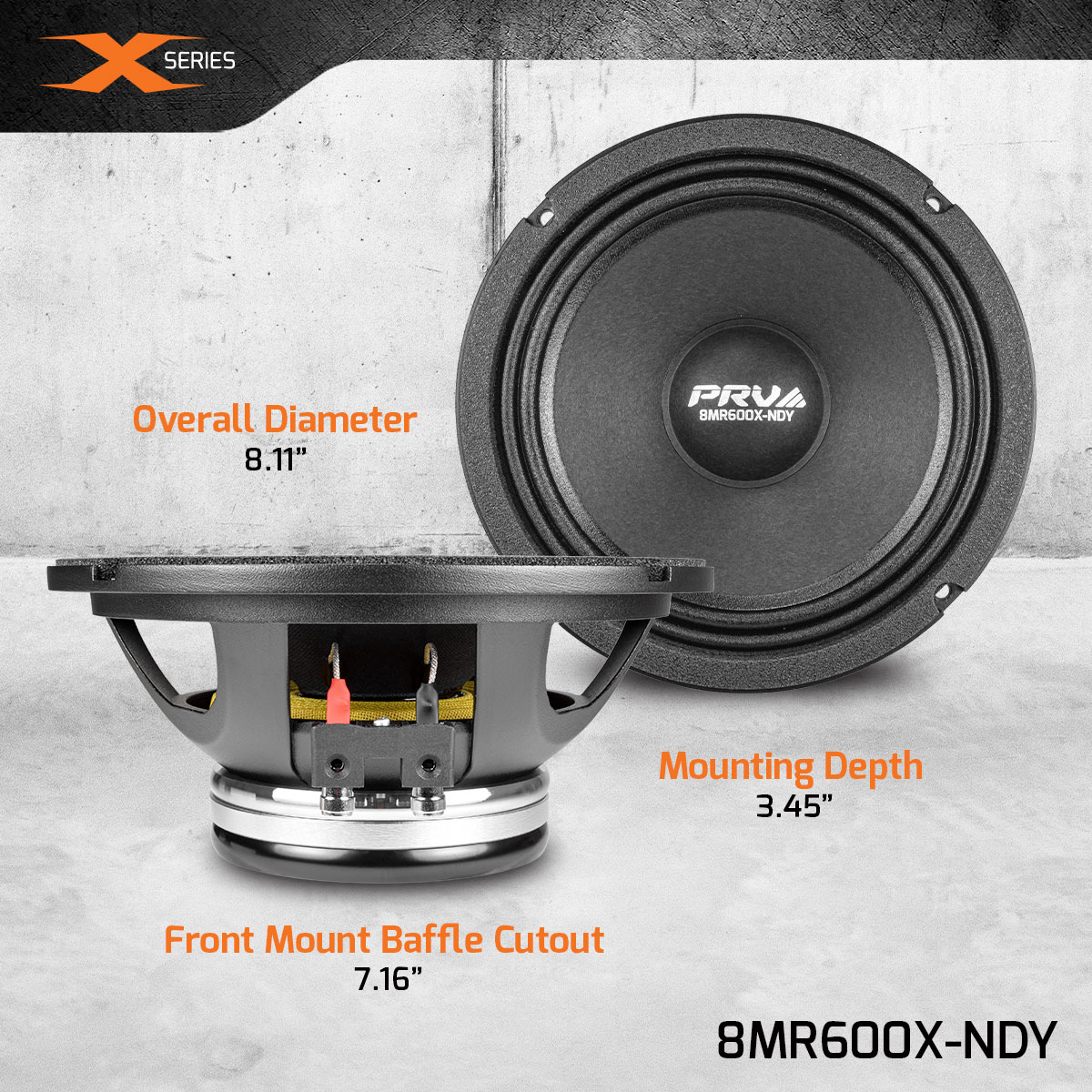

- Mounting Depth
- 3.45" (87.6 mm)
- Cutout
- 7.16" (182 mm)
- Overall Dimensions
- 8.11" (206 mm) dia., 3.81" (96.7 mm) deep
- Net Weight
- 5.00 lbs (2.26 kg)
- Weight
- 5.4 lbs
- Dimensions
- 8.75 × 8.75 × 4.75 in
