SoundQubed C Series C1-3200 Class D Monoblock Amplifier 3200W RMS SQ-C1-3200
$549.95
The C1-3200 is where the C Series starts getting serious.
- RMS Power @ 4 ohm: 970W
- RMS Power @ 2 ohm: 1800W
- RMS Power @ 1 ohm: 3200W
- Frequency Response: 20Hz-20KHz
- Minimum Impedance: 1 ohm
Out of stock
The details
Product Overview
SoundQubed C Series C1-3200 Class D Monoblock Amplifier 3200W RMS – The C1-3200 is where the C Series starts getting serious. It delivers 3,200 watts RMS at 1 ohm from a body under 10 inches long, which is a lot of power for that much space. DV8 Shop is an authorized SoundQubed dealer.
It’s built for a multi-sub build that still has to leave room for groceries. It takes 0-gauge power, has an adjustable low-pass, high-pass and bass boost, a cooling fan, and the usual full set of protection circuits so it keeps playing through a long session.
Every C Series amp is checked on Audio Precision test gear before it leaves SoundQubed, and each one carries thermal, overload, DC output, short-circuit and voltage protection.
By the numbers
- RMS Power @ 4 ohm
- 970W
- RMS Power @ 2 ohm
- 1800W
- RMS Power @ 1 ohm
- 3200W
- Damping Factor
- 92
- Input Impedance
- 22K ohms
- Low Level Input Range
- 400mV-6V
- X-Over Filter Range (CH 1/2)
- HPF: 10Hz-2KHz / LPF: 50Hz-20KHz
- Bass Boost Range
- 0~12dB
- Amplifier Class
- Digital
- Number of Channels
- 1
- Minimum Impedance
- 1 ohm
- Power Input Terminal Size
- 0GA
- Recommended Fuse
- 300A
- DC Output Protection
- Yes
- Short Circuit Output Protection
- Yes
- Voltage Input Protection
- Yes
- Tiffany-Style RCA Inputs
- Yes
- Frequency Response
- 20Hz-20KHz
- Efficiency @ 4 ohm
- 85%
- Total Harmonic Distortion (THD)
- 0.20%
- Bass Boost Frequency
- 30Hz-80Hz
- Body Color
- Black
- Overall Length
- 9.69" / 236mm
- Overall Width
- 5.91" / 150mm
- Overall Height
- 2.17" / 55mm
- Heatsink Length
- 8.5" / 216mm
- Weight
- 6 lbs
- Dimensions
- 13 × 8 × 4 in
- Brand
- SoundQubed
- Series
- C Series
- Model
- C1-3200
- Signal to Noise Ratio
- 90dB
- Selectable X-Over (CH 1/2)
- Band-Pass Fixed
- Amplifier Type
- Monoblock Full-Range
- LED Indicator
- Power / Protect / Clip
- Remote Level Control
- Yes
- Cooling Fan
- Yes
- Thermal Protection
- Yes
- Over-Load Protection
- Yes

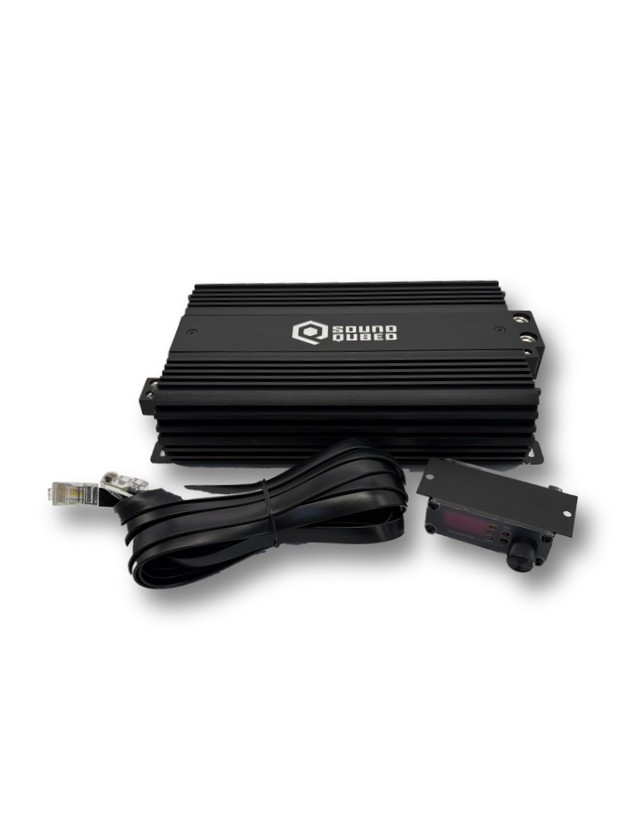

- Optional Remote with Voltmeter & Temp Display
- Yes
