SoundQubed

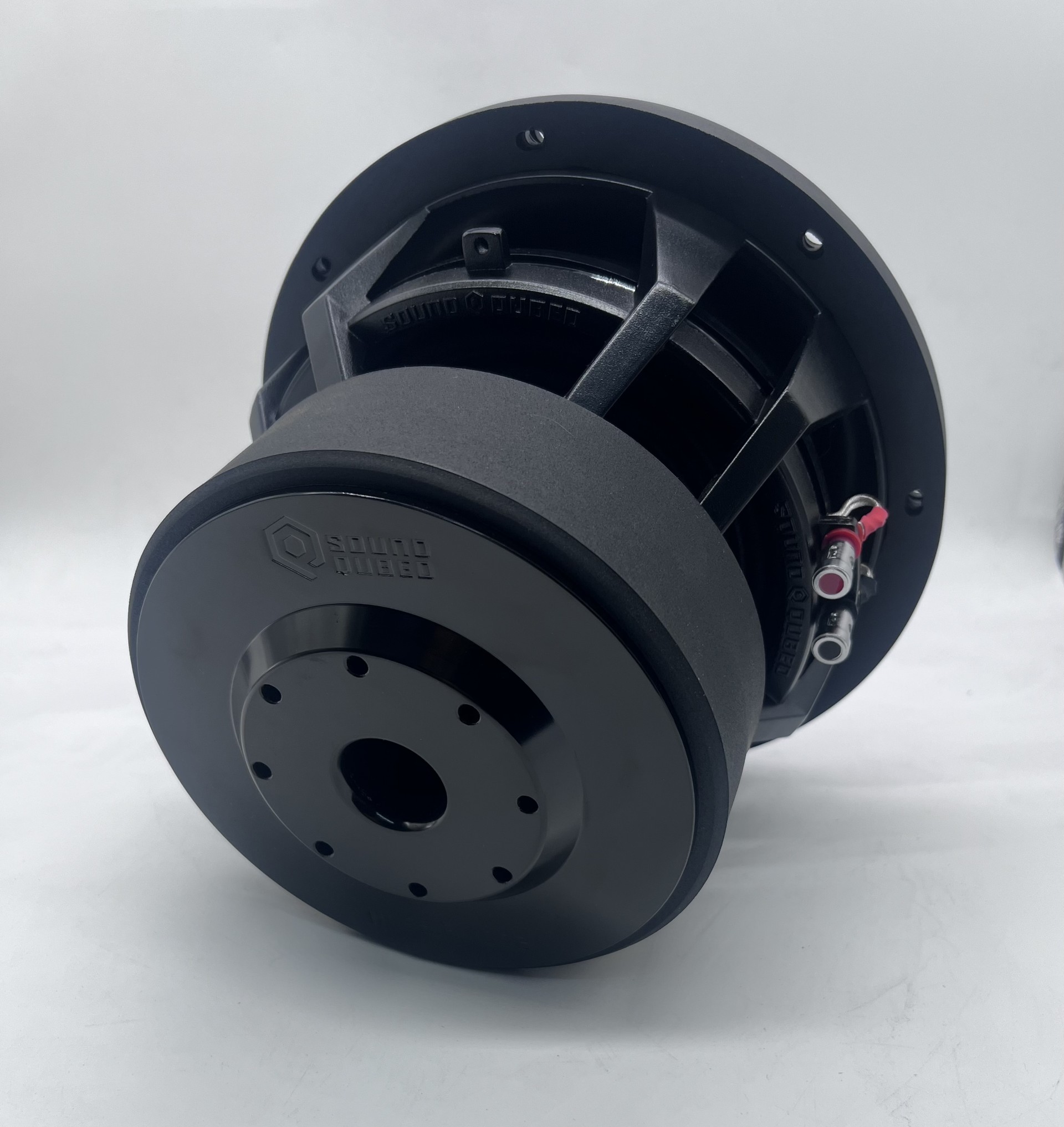

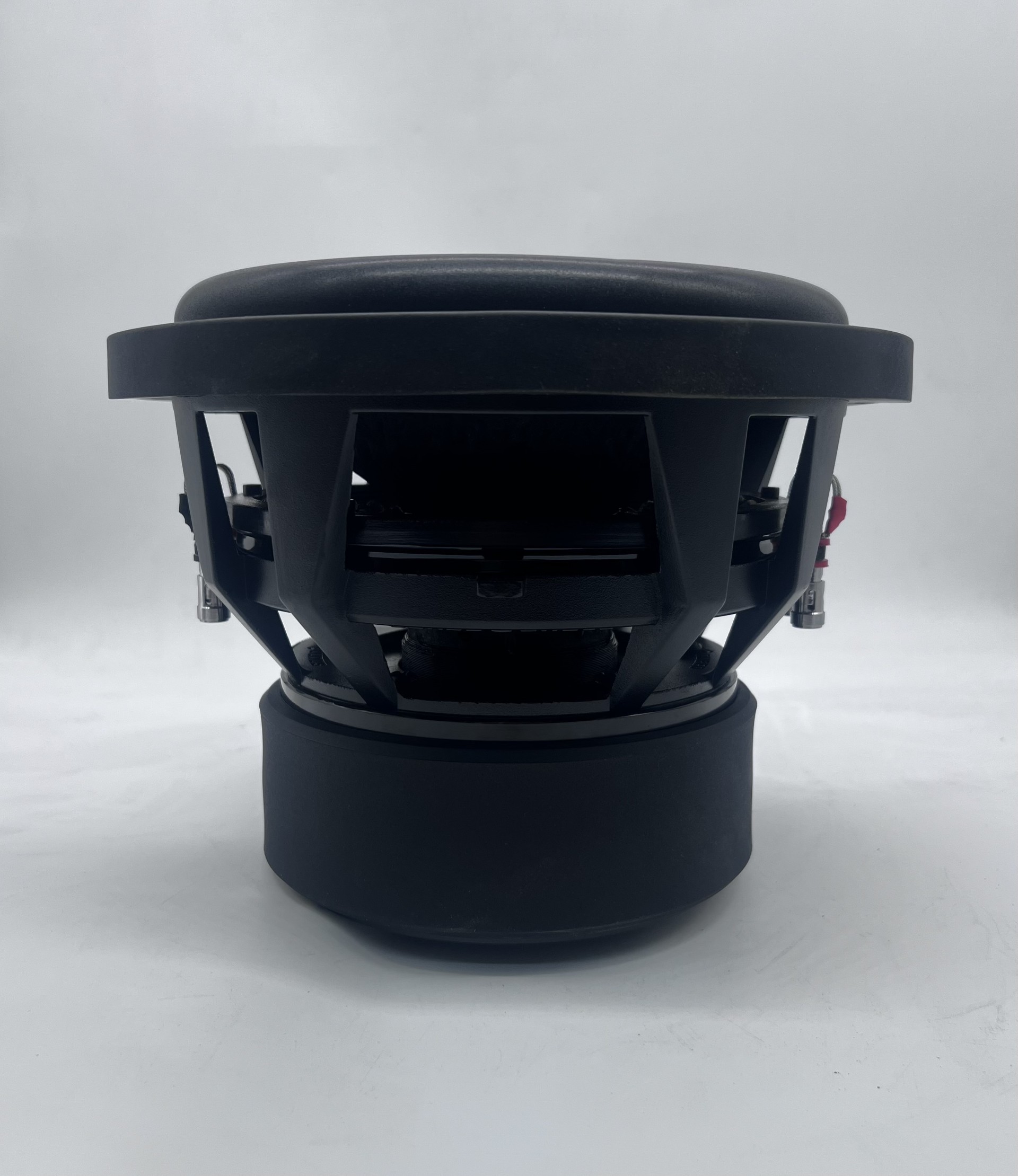

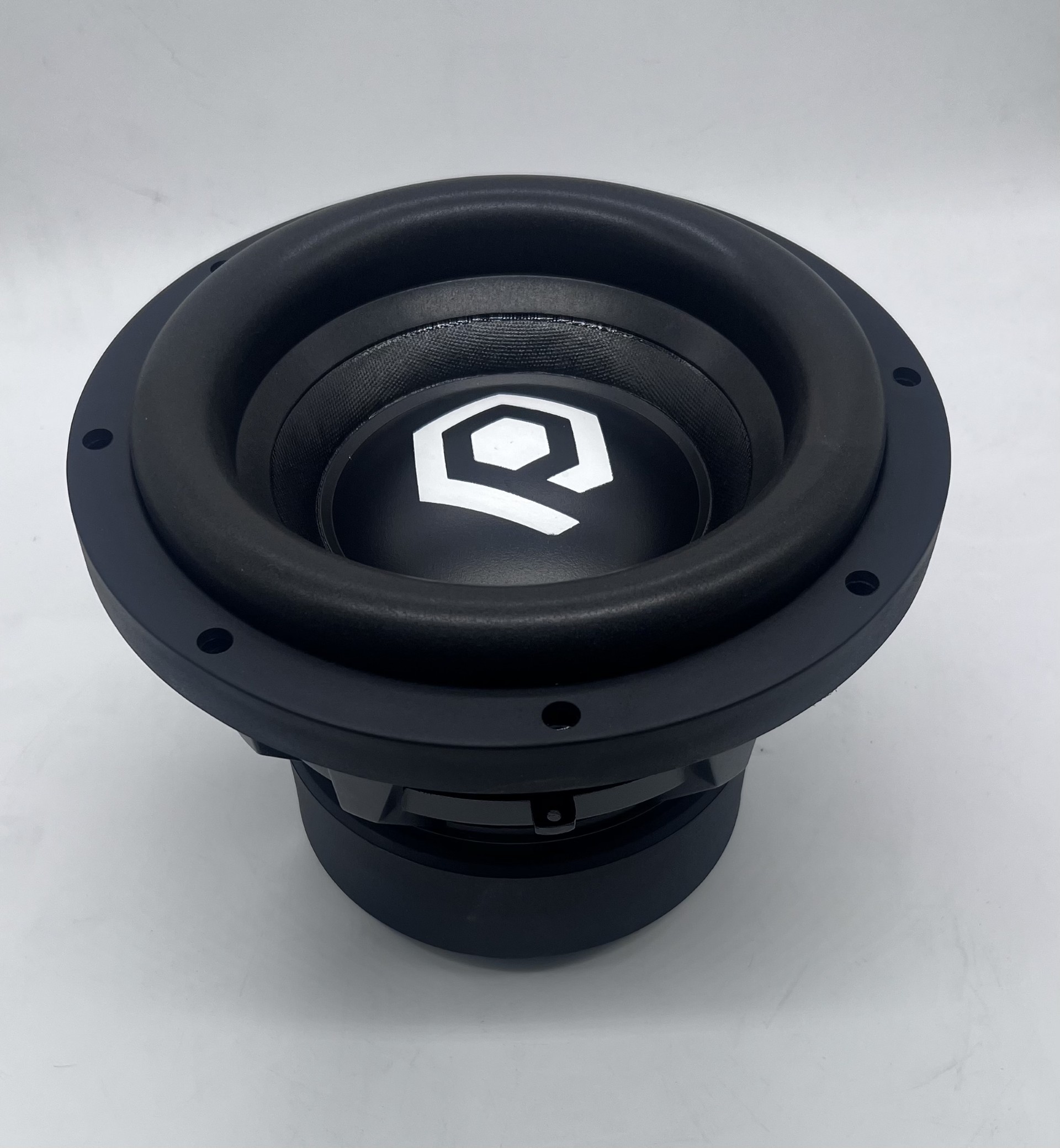

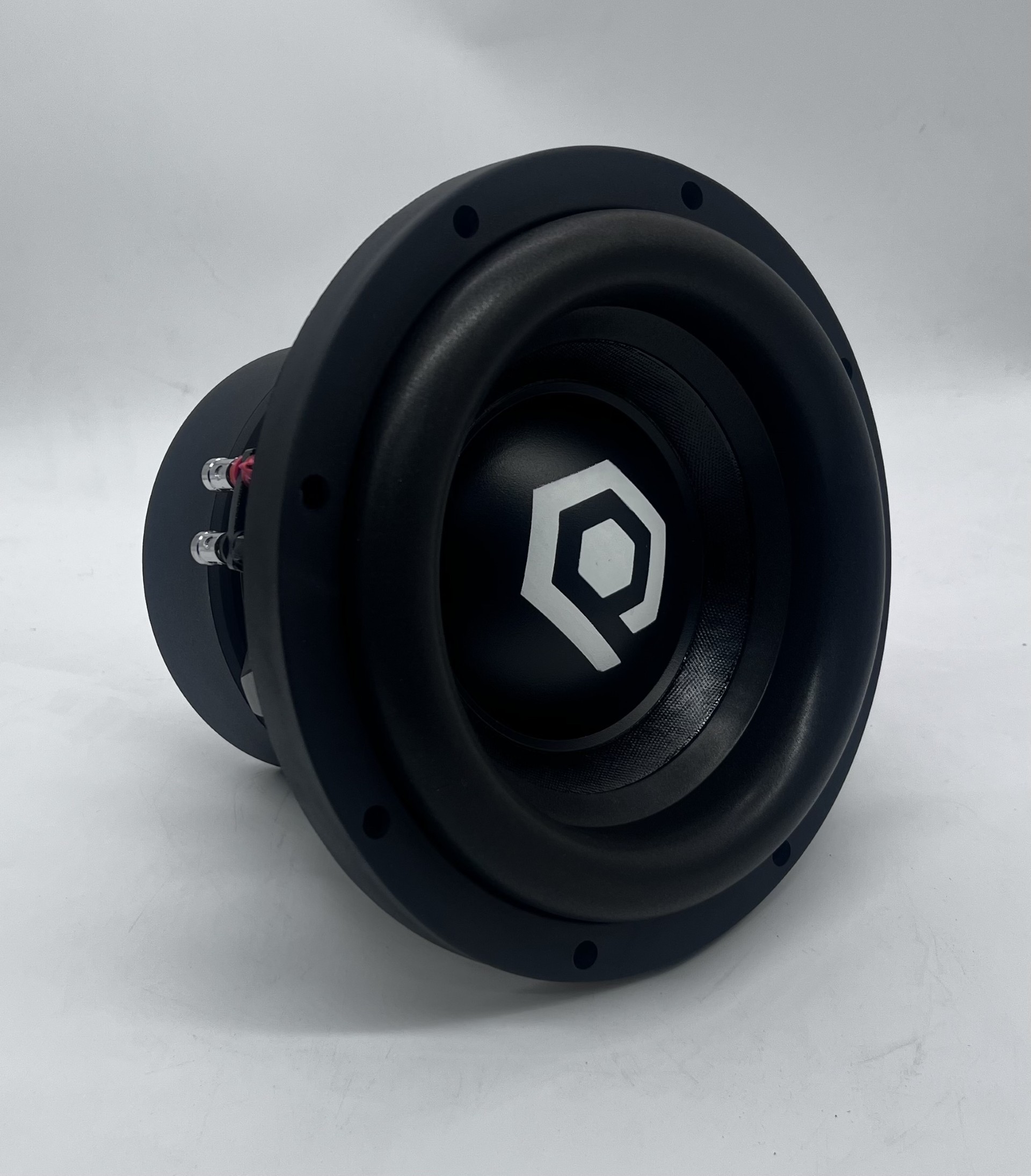

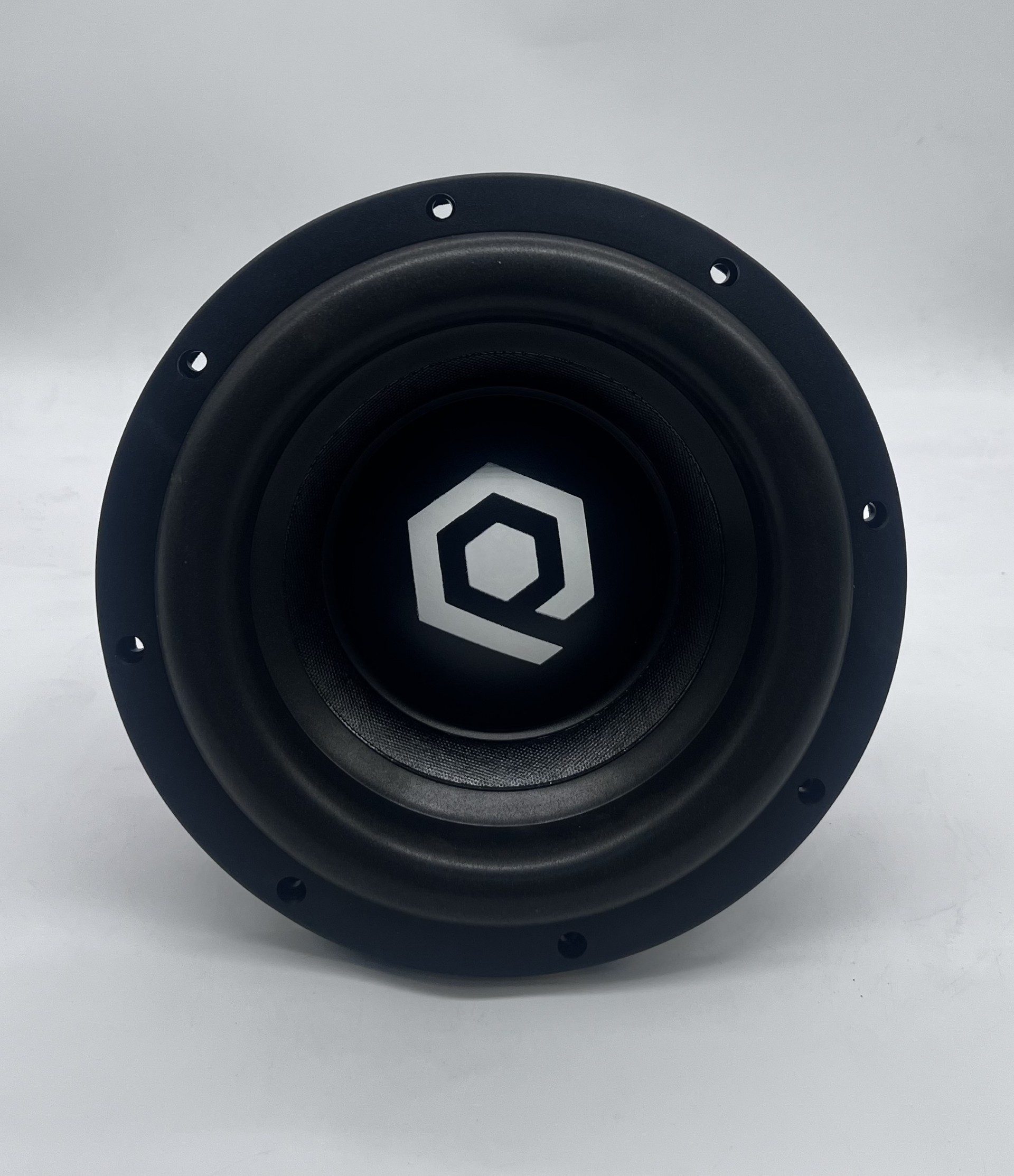

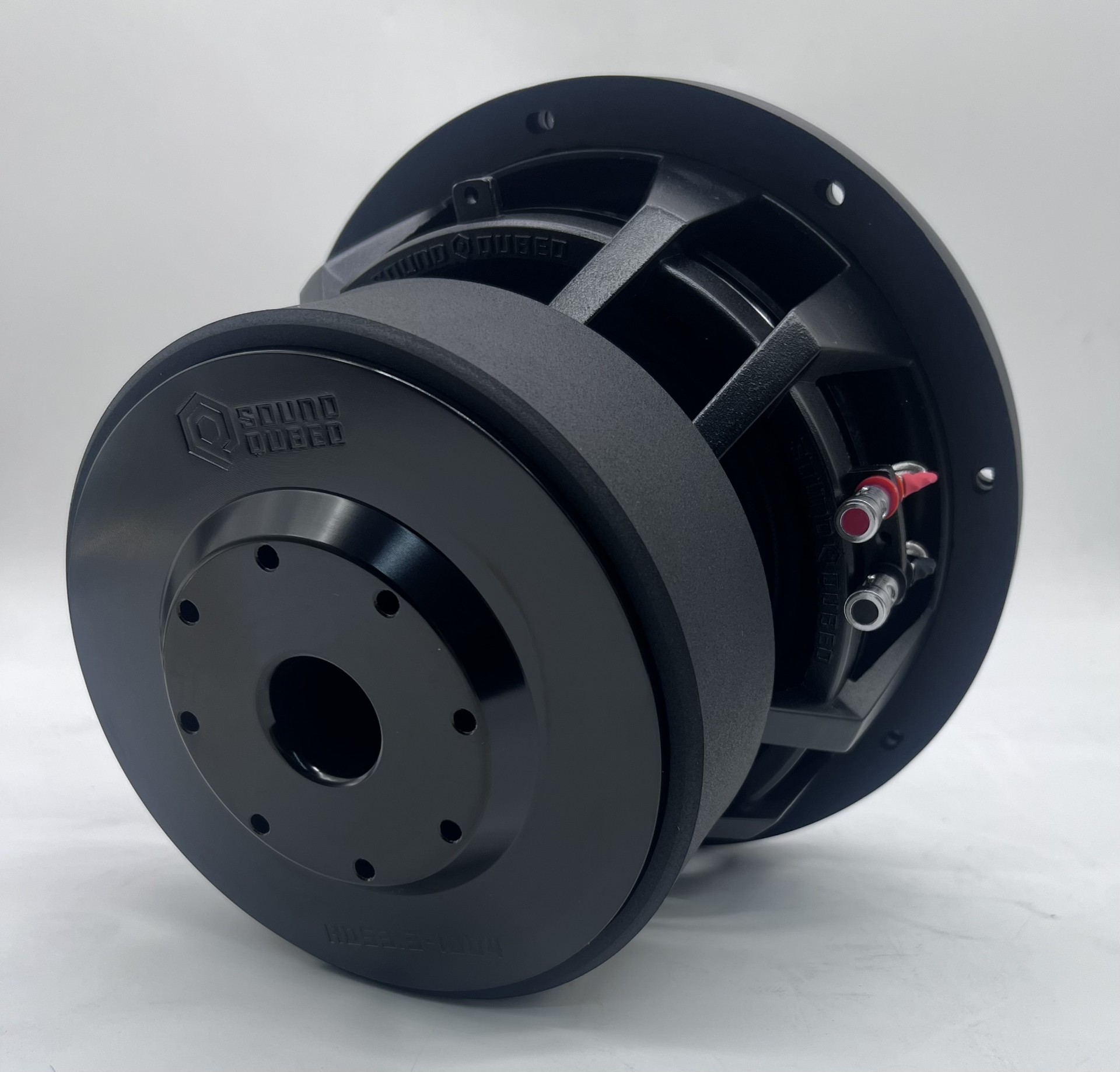

SoundQubed HDS3.3 Series 10 inch Subwoofer 3 inch DVC 1500W/3000W SQ-HDS3.3-10
$299.95
Lease for as low as $13.56/week. Apply Now
The HDS3.3 10-inch handles 1,500 watts RMS and gives you a big jump in output over a typical daily-driver sub.
- Impedance Options: Dual 2 Ohm / Dual 4 Ohm
- RMS Power: 1,500W
- Peak Power: 3,000W
- Mounting Depth: 183mm / 7.2"
- Sealed Enclosure: 0.5 – 1.25 ft³
RMS Power1,500W
Peak Power3,000W
Xmax13mm
01 Overview
The details
Product Overview
SoundQubed HDS3.3 Series 10 inch Subwoofer 3 inch DVC 1500W/3000W – The HDS3.3 10-inch handles 1,500 watts RMS and gives you a big jump in output over a typical daily-driver sub. It is a popular pick for one- or two-sub systems where you want real low end without building an entire competition setup around it. DV8 Shop is an authorized SoundQubed dealer.
Choose dual 2-ohm voice coils (wires to 1 or 4 ohms) or dual 4-ohm voice coils (wires to 2 or 8 ohms) to match your amplifier and the number of subs in your build.
- 1,500W RMS / 3,000W peak power handling
- 3" dual voice coil, Dual 2 Ohm or Dual 4 Ohm
- Recommended sealed box: 0.5 – 1.25 ft³; ported: 1 – 1.75 ft³
- Mounting depth 183mm / 7.2"
02 Tech specs
By the numbers
RMS Power 01
1,500W
Continuous rating
Peak Power 02
3,000W
Short-burst rating
Xmax 03
13mm
One-way excursion
Sensitivity 04
81.2dB
Efficiency
Excursion
Scale 0 to 32mmXMAX 13MM
XMECH 27MM
- Impedance Options
- Dual 2 Ohm / Dual 4 Ohm
- RMS Power
- 1,500W
- Peak Power
- 3,000W
- Dual 2 or 4 Ohms
- D2 Ohms, D4 Ohms
- Xmax (±)
- 13mm
- Xmech (±)
- 27mm
- Sd
- 330 cm²
- Fs
- 27.6 Hz (D2) / 28.7 Hz (D4)
- Qms
- 5.35 (D2) / 4.86 (D4)
- Qes
- 0.46 (D2) / 0.52 (D4)
- Qts
- 0.43 (D2) / 0.47 (D4)
- Vas
- 18.8 L (D2) / 18.9 L (D4)
- Le
- 2.44 mH (D2) / 3.50 mH (D4)
- Sensitivity (1W/1m)
- 81.2 dB (D2) / 81.2 dB (D4)
- BL
- 18.6 N/A (D2) / 23.2 N/A (D4)
- Voice Coil
- 3" dual voice coil
- Coil Length
- 40mm
- Magnet Weight
- 160 oz
- Motor Diameter
- 186mm / 7.32"
- Size
- 10"
- Overall Diameter
- 275mm / 10.83"
- Cutout Diameter
- 235mm / 9.25"
- Mounting Depth
- 183mm / 7.2"
- Sealed Enclosure
- 0.5 – 1.25 ft³
- Ported Enclosure
- 1 – 1.75 ft³
- Weight
- 27 lbs
- Dimensions
- 11 × 11 × 10 in
- Brand
- SoundQubed
- Model
- HDS3.3 10 inch
