The details
Product Overview
Why we stock the DS18 IXS12.4S

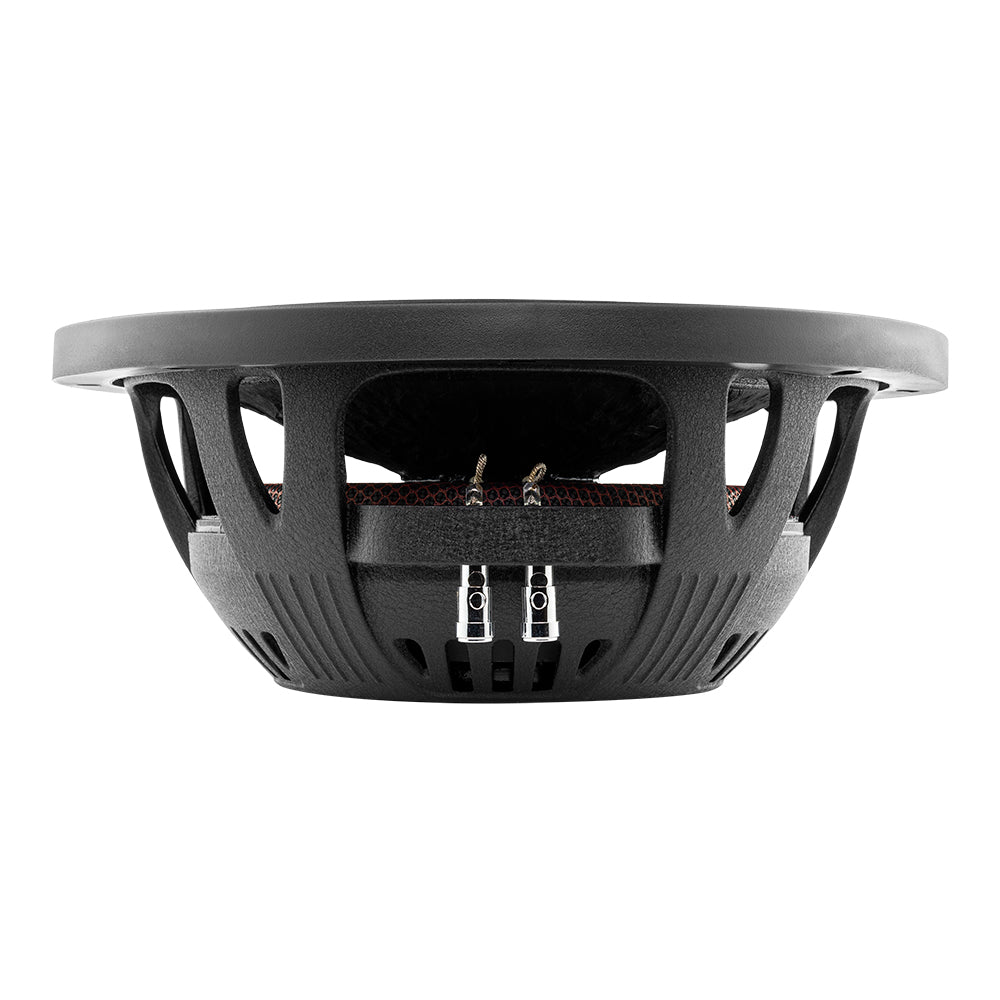

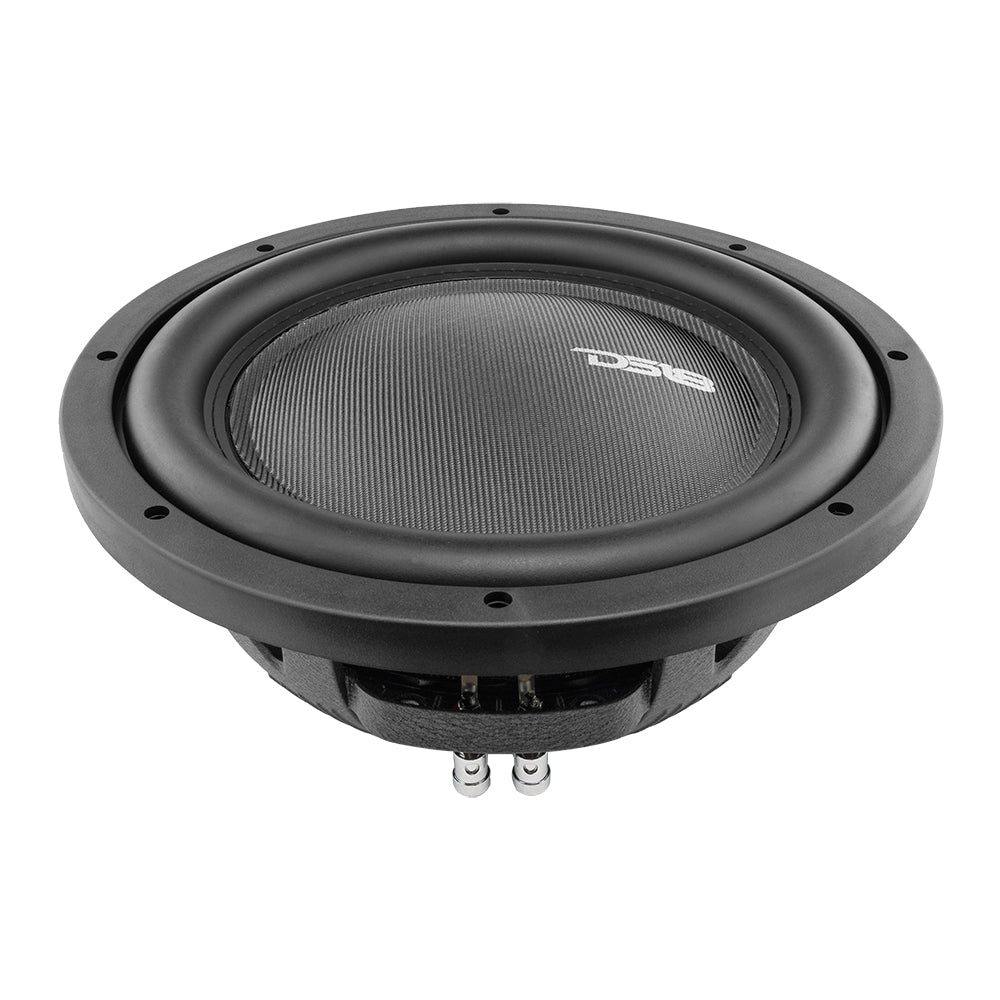

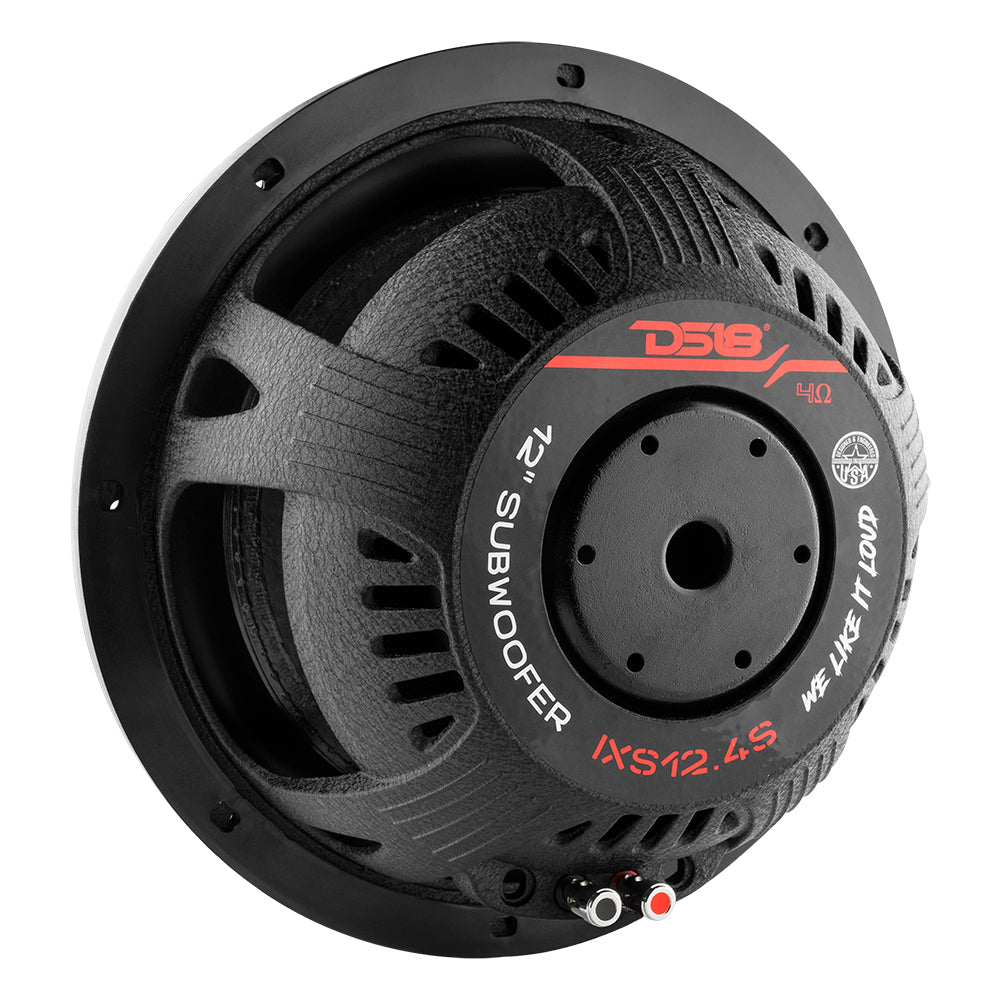

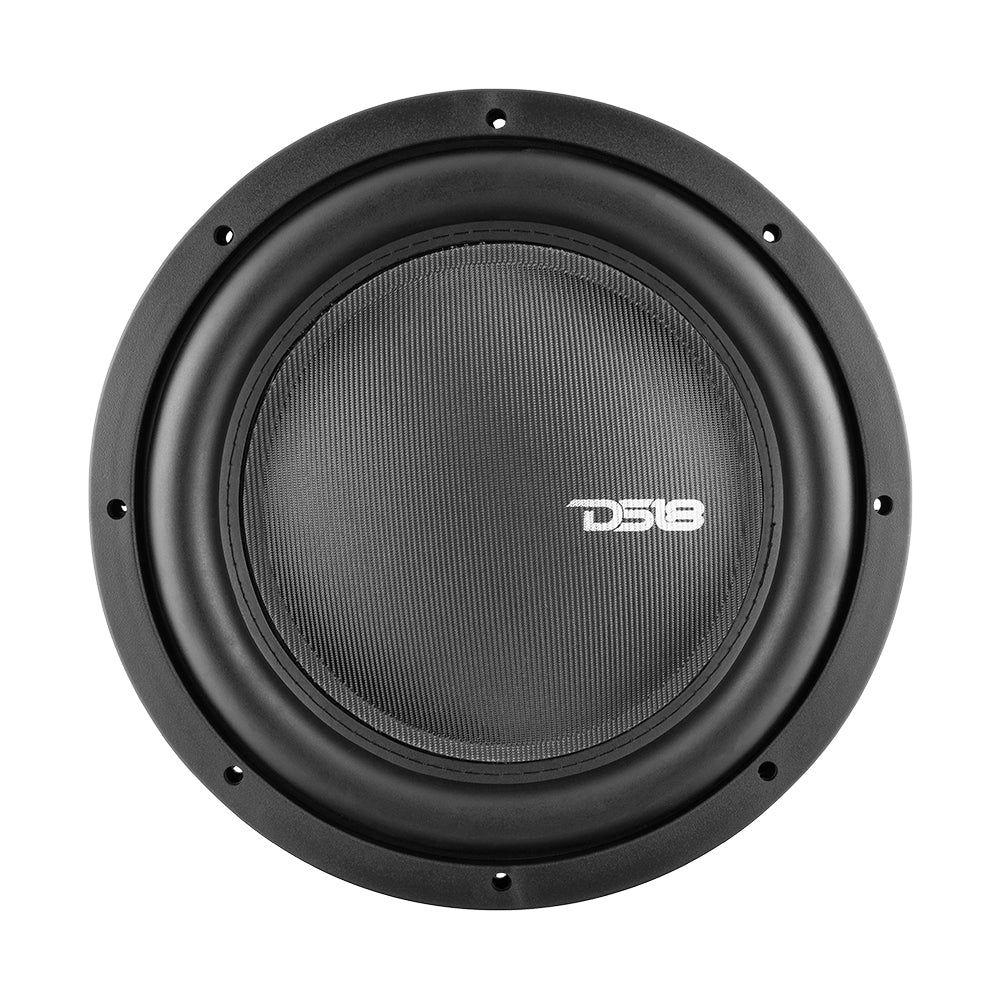

The DS18 IXS12.4S is a shallow-mount 12″ subwoofer for trucks and cars that don’t have room for a full-depth sub. It needs just 4.33″ of mounting depth but still handles 800 watts RMS (1,600 max) on a 2.5″ single 4 ohm voice coil, with a 62 oz ferrite magnet driving it.
It’s a great fit behind the rear seat of a pickup or under a seat, and it plays from 20Hz up, so you don’t give up low end. Plan your power run with our wire gauge guide, and browse more DS18 subwoofers.

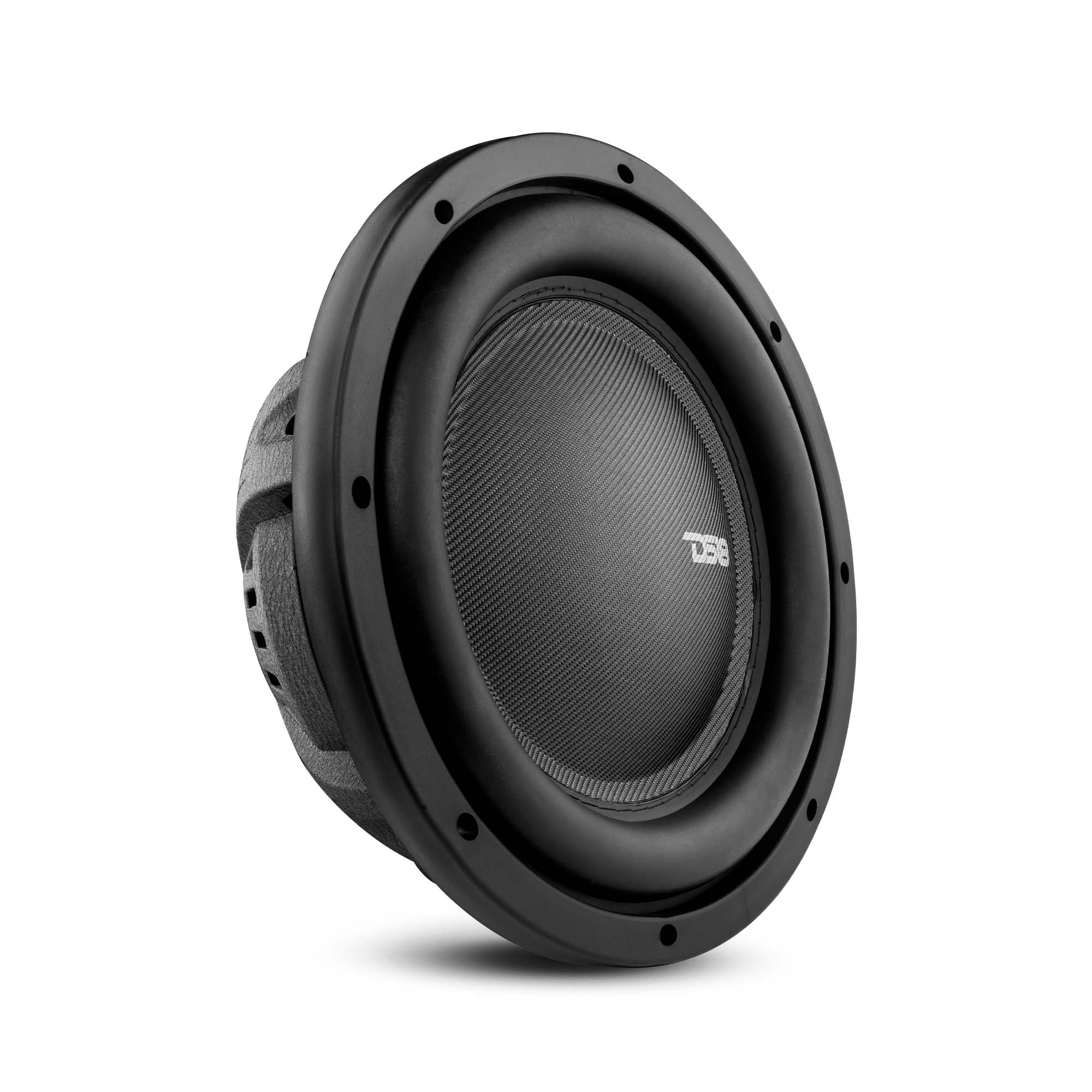

Continuing the tradition of our very popular shallow mount subwoofers, we now have the IXS line which is the successor to our best selling SW slim subwoofer line. We took the SW line and made it even beefier for more bass. The IXS comes in both 10 and 12 inch. Also they both have multiple voice coil options to get the most from your amplifier. These subs are perfect for the audiophile that wants a lot of bass but does not have much space for a full sized subwoofer. With these you can get that loud thump without having to sacrifice a lot of room.
Highlights
Technical Details IXS12.4S Product Manual
Box Info
By the numbers
- RMS Power
- 800 Watts RMS
- Impedance
- 4 Ohms
- MAX Power
- 1600W
- Frequency Response
- 20Hz – 600Hz
- Voice coil size
- 2.5″
- Magnet
- Ferrite
- Magnet Size
- 62 oz
- Frame
- Aluminum
- Cone
- Paper
- Dust Cap Material
- Fiberglass
- Surround
- Stitched Rubber
- Voice Coil Former Material
- Aluminum
- Size
- 12 inch
- Mounting Depth
- 4.33″
- Overall Diameter
- 12.6″
- Overall Depth
- 4.73″
- Front Mount Baffle Cutout
- 10.79″
- Model
- IXS12.4S
- Type
- Shallow Subwoofer
