DS18
DS18 PROJECT360.64BN Project 360 Neodymium Mid-High Loudspeakers With Bullet
$244.95
Lease for as low as $11.07/week. Apply Now
The DS18 PROJECT360 6.5" 4-ohm mid-high loudspeaker is built for loud, clear vocals in pro audio and SPL builds.
- Nominal Diameter: 6.5" / 152mm
- RMS Power Handling: 350 W
- MAX Power Handling: 700 W
- Nominal Impedance: 4 Ohms
- Frequency Response: 100Hz–17kHz
- Sensitivity (1w/1m): 100 dB
RMS Power350W
Peak Power700W
Sensitivity100dB
01 Overview
The details
Product Overview

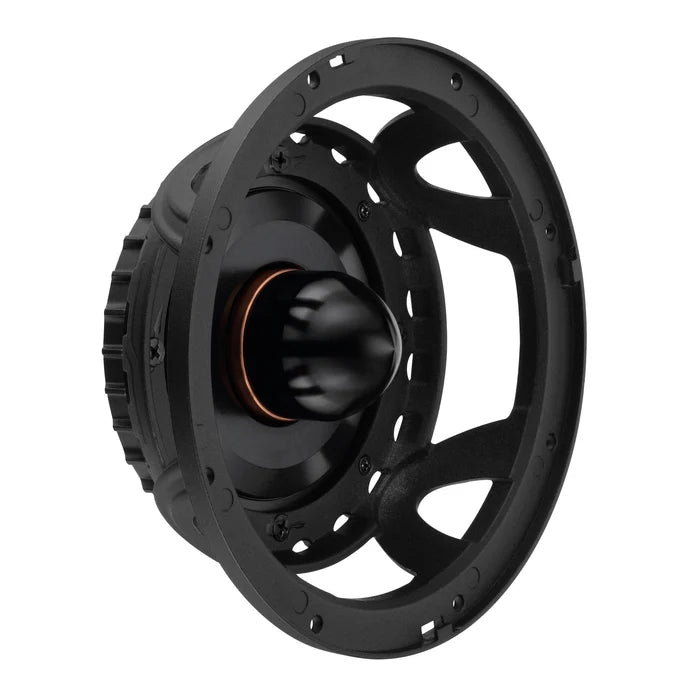

The DS18 PROJECT360 6.5" 4-ohm mid-high loudspeaker is built for loud, clear vocals in pro audio and SPL builds. It uses a neodymium magnet and bullet phase plug for maximum output and clarity, and the PROJECT360 rotating recone design lets you swap the cone assembly in minutes instead of replacing the whole speaker.
- Patent-Pending Rotating Recone Design
- Efficient Bullet Design
- Competition-Level Output
- No Glue. No Downtime
- High Power Handling
02 Tech specs
By the numbers
RMS Power 01
350W
Continuous rating
Peak Power 02
700W
Short-burst rating
Sensitivity 03
100dB
Efficiency
Size 04
6.5in
Nominal
- Nominal Impedance
- 4 Ohms
- RMS Power Handling
- 350 W
- MAX Power Handling
- 700 W
- Recommended High–Pass Crossover
- 140 Hz
- Speaker Terminals
- Spade
- Sensitivity (1w/1m)
- 100 dB
- Frequency Response
- 100Hz–17kHz
- Excursion (one way)
- 0.3 mm
- Free Air Resonance
- 162 Hz
- BL Factor
- 12.739
- Cone Shape
- Curvilinear
- Easy Recone Design
- Yes
- Voice Coil Diameter
- 1.75" / 44.5mm
- Voice Coil Former Material
- Kapton
- Winding Material
- CCAW
- Cone Material
- Paper
- Bullet Material
- CNC Aluminum
- Bullet Color
- Black
- Surround Material
- Cloth
- Spider Diameter
- 4" / 102mm
- Basket Material
- Aluminum
- Basket Color/Finish
- Black
- Magnet Material
- Neodymium
- Magnet Weight
- 12.8 oz
- Voice Coil Inductance
- 0.039 mH
- Cone Area
- 176.71 cm2
- Motor Diameter
- 3.94" / 100mm
- Nominal Diameter
- 6.5" / 152mm
- Equivalent Volume
- 3.218L / 0.113ft3
- Overall Diameter
- 6.85" / 174mm
- Overall Depth
- 3.27" / 83mm
- Front Mount Baffle Cutout
- 5.83" / 148mm
- Mounting Depth
- 2.72" / 69mm
- Sold as
- Single unit
- Grill Included
- No
- Demodulating Rings
- Yes
- Improved Heat Dissipation
- Yes
- Leads Connection Type
- Round Crossed
- Mechanical Factor
- 6.812
- Electrical Factor
- 0.251
- Total Factor
- 0.242
- Moving Mass
- 13.134 g
- Mechanical Compliance
- 0.073 mm/N
- DC Resistance
- 3 Ohms
