DS18
DS18 PROJECT360.64N 6.5 inch Neodymium Mid-High Loudspeaker with Rotating Recone Design 4 Ohm
$229.95
Lease for as low as $10.39/week. Apply Now
The DS18 PROJECT360 6.5" 4-ohm mid-high loudspeaker is built for loud, clear vocals in pro audio and SPL builds.
- Nominal Diameter: 6.5" / 152.4mm
- RMS Power Handling: 350 W
- MAX Power Handling: 700 W
- Nominal Impedance: 4 Ohms
- Frequency Response: 100Hz–17kHz
- Sensitivity (1w/1m): 100.5 dB
RMS Power350W
Peak Power700W
Sensitivity100.5dB
01 Overview
The details
Product Overview

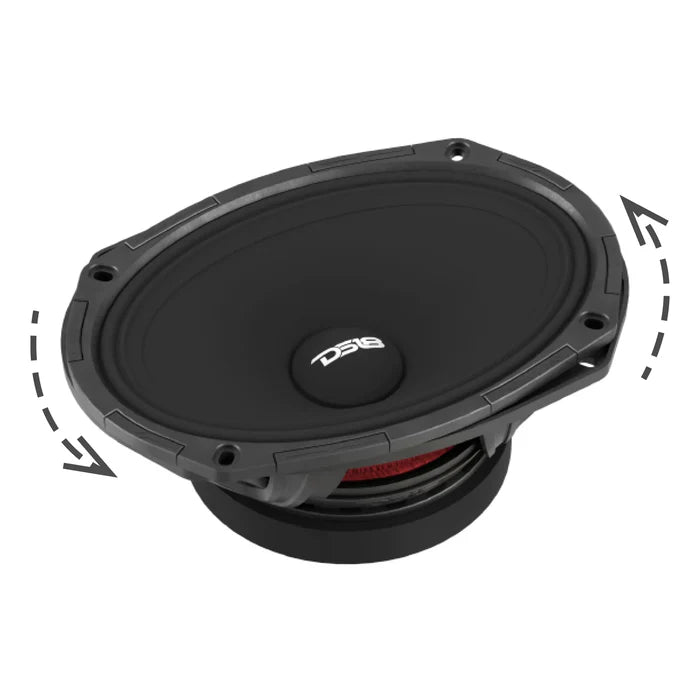

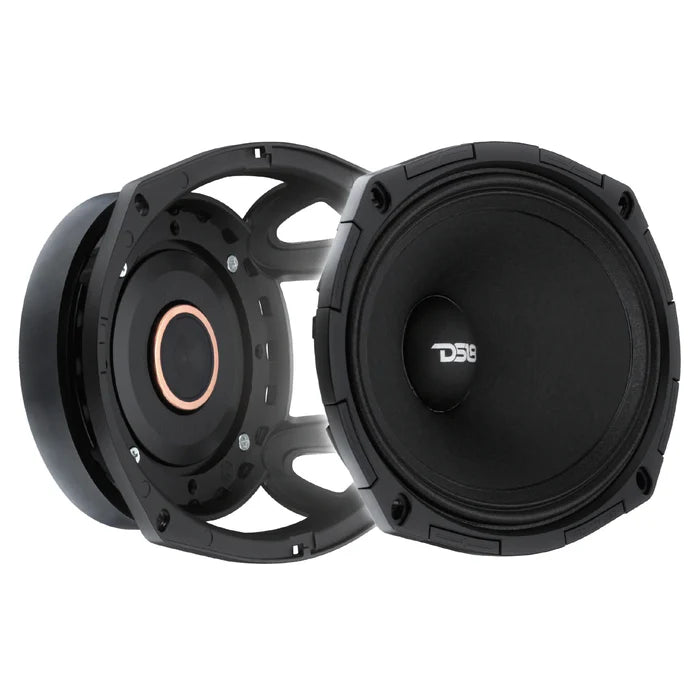

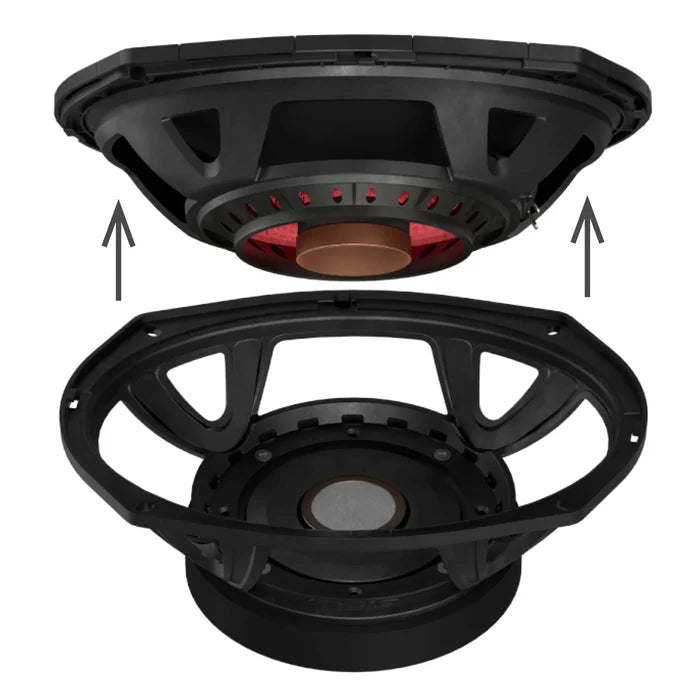

The DS18 PROJECT360 6.5" 4-ohm mid-high loudspeaker is built for loud, clear vocals in pro audio and SPL builds. It uses a lightweight neodymium magnet for higher output and efficiency, and the PROJECT360 rotating recone design lets you swap the cone assembly in minutes instead of replacing the whole speaker.
- Patent-Pending Rotating Recone Design
- Crystal-Clear Highs
- Competition-Level Output
- No Glue. No Downtime
- High Power Handling
- High-Efficiency Design
02 Tech specs
By the numbers
RMS Power 01
350W
Continuous rating
Peak Power 02
700W
Short-burst rating
Sensitivity 03
100.5dB
Efficiency
Size 04
6.5in
Nominal
- Nominal Impedance
- 4 Ohms
- RMS Power Handling
- 350 W
- MAX Power Handling
- 700 W
- Recommended High-Pass Crossover
- 100 Hz
- Speaker Terminals
- Spade
- Sensitivity (1w/1m)
- 100.5 dB
- Frequency Response
- 100Hz–17kHz
- Excursion (one way)
- 0.3 mm
- Free Air Resonance
- 160 Hz
- BL Factor
- 12.708
- Cone Shape
- Curvilinear
- Replacement Recone Kit
- PROJECT360.64RCK
- Voice Coil Diameter
- 1.75" / 44.5mm
- Voice Coil Former Material
- Kapton
- Winding Material
- CCAW
- Cone Material
- Paper
- Dust Cap Material
- Paper
- Surround Material
- Cloth
- Spider Diameter
- 4" / 102mm
- Basket Material
- Aluminum
- Basket Color / Finish
- Black
- Magnet Material
- Neodymium
- Magnet Weight
- 12.8 oz
- Voice Coil Inductance
- 0.035 mH
- Cone Area
- 176.71 cm2
- Motor Diameter
- 3.94" / 100mm
- Nominal Diameter
- 6.5" / 152.4mm
- Equivalent Volume
- 2.78L / 0.098ft3
- Overall Diameter
- 6.85" / 174mm
- Overall Depth
- 3.27" / 83mm
- Front Mount Baffle Cutout
- 5.83" / 148mm
- Mounting Depth
- 2.72" / 69mm
- Sold As
- Single Unit
- Grill Included
- No
- Demodulating Rings
- Yes
- Improved Heat Dissipation
- Yes
- Leads Connection Type
- Round Crossed
- Mechanical Factor
- 2.667
- Electrical Factor
- 0.264
- Total Factor
- 0.240
- Moving Mass
- 14.523 g
- Mechanical Compliance
- 0.063 mm/N
- DC Resistance
- 3.4 Ohm
