01 Overview
The details
Product Overview

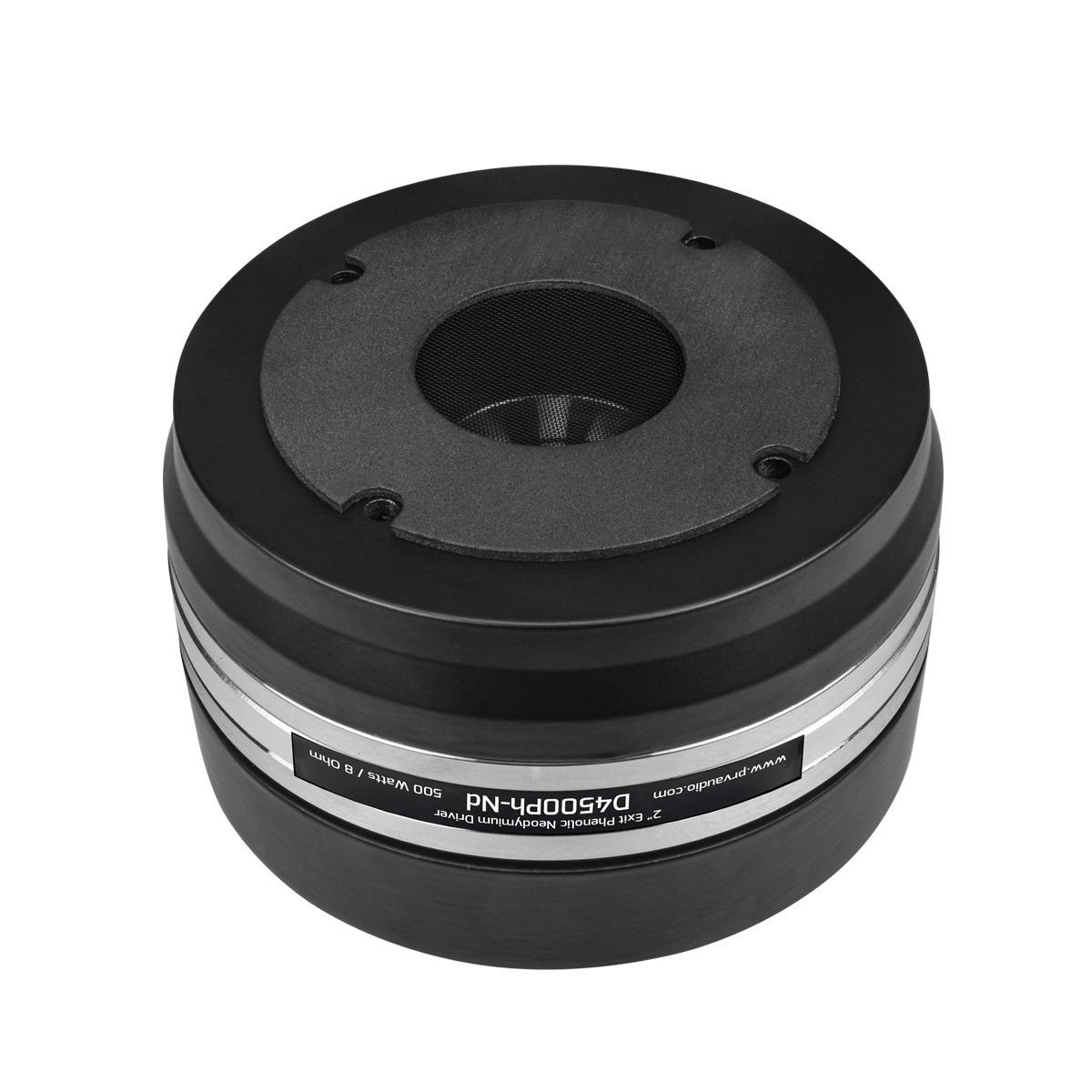

The PRV D4500Ph-Nd is built for high-output car audio competition, with strong vocal reproduction from around 450 Hz. A durable phenolic diaphragm and high-temperature 4" voice coil handle 500 W RMS program power, and the neodymium motor makes it lighter and more compact than the ferrite D4500Ph.
Key Features
- 250 W nominal, 500 W RMS program, 1,000 W peak
- 110 dB sensitivity (2.00V/1m)

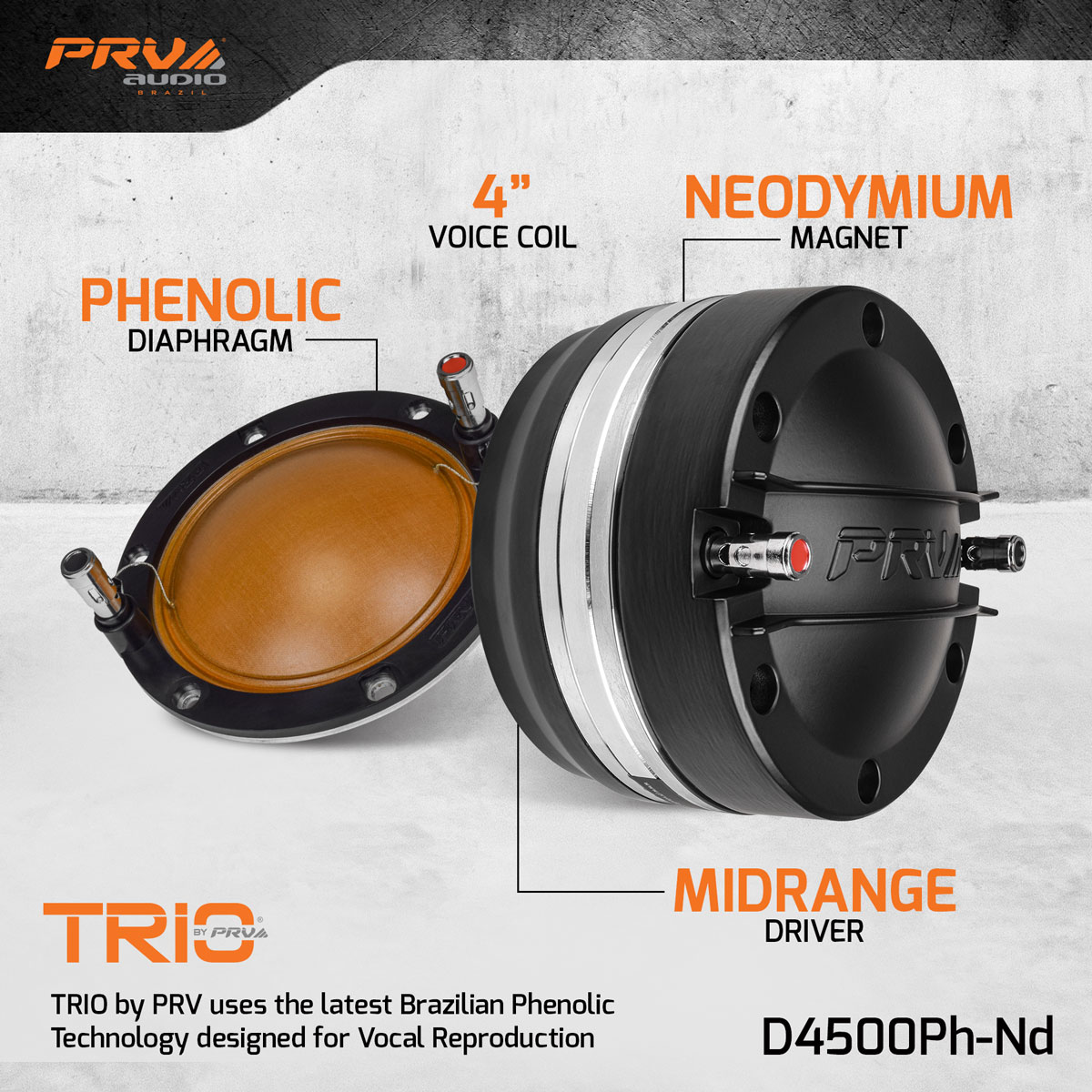

- Phenolic diaphragm, 4" CCAW voice coil
- Neodymium motor

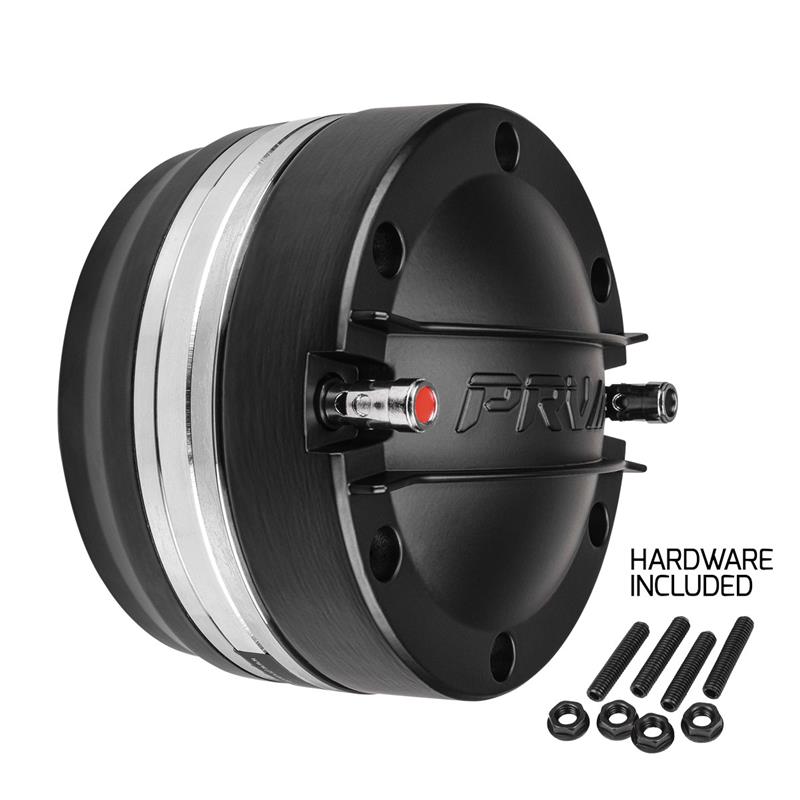

- Mounting hardware included
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
500W
Continuous rating
Peak Power 02
1,000W
Short-burst rating
Sensitivity 03
110dB
Efficiency
Size 04
4in
Nominal
- Impedance
- 8 Ohm
- Nominal Power Handling
- 250 W
- Continuous Program Power (RMS)
- 500 W
- Max Peak Power
- 1,000 W
- Recommended Hi Pass Crossover
- 600 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 110 dB
- Frequency Response
- 450 – 7,000 Hz
- Voice Coil Diameter
- 4" (101.6 mm)
- Magnet
- Neodymium
- Mounting
- Bolt-on, M6 x 4 on a 4" (102 mm) bolt circle
- Mounting Depth
- 4.43" (112.5 mm)
- Net Weight
- 9.59 lbs (4.35 kg)
- Weight
- 9.92 lbs
- Dimensions
- 6.5 × 6.5 × 5.75 in
- Exit Throat
- 2" (50 mm)
- Diaphragm
- Phenolic
