PRV 6×9 inch 4 Ohm Bullet Mid Range Speaker PRV-69MR500-4BULLET
$69.91
6×9″ 4 Ohm pro audio bullet midrange, 500 W RMS and 96 dB, a high-output upgrade over coaxial 6x9s.
RMS Power500W
Peak Power1,000W
Sensitivity96dB
01 Overview
The details
Product Overview
The PRV 69MR500-4 BULLET brings pro audio midrange to the 6×9 format. An aluminum bullet phase plug spreads sound evenly and pulls heat from the voice coil, while the pressed paper cone and triple-roll cloth surround keep response smooth up to 12.5 kHz. It is built to replace 2-way or 3-way coaxial 6x9s with far more output.
Key Features

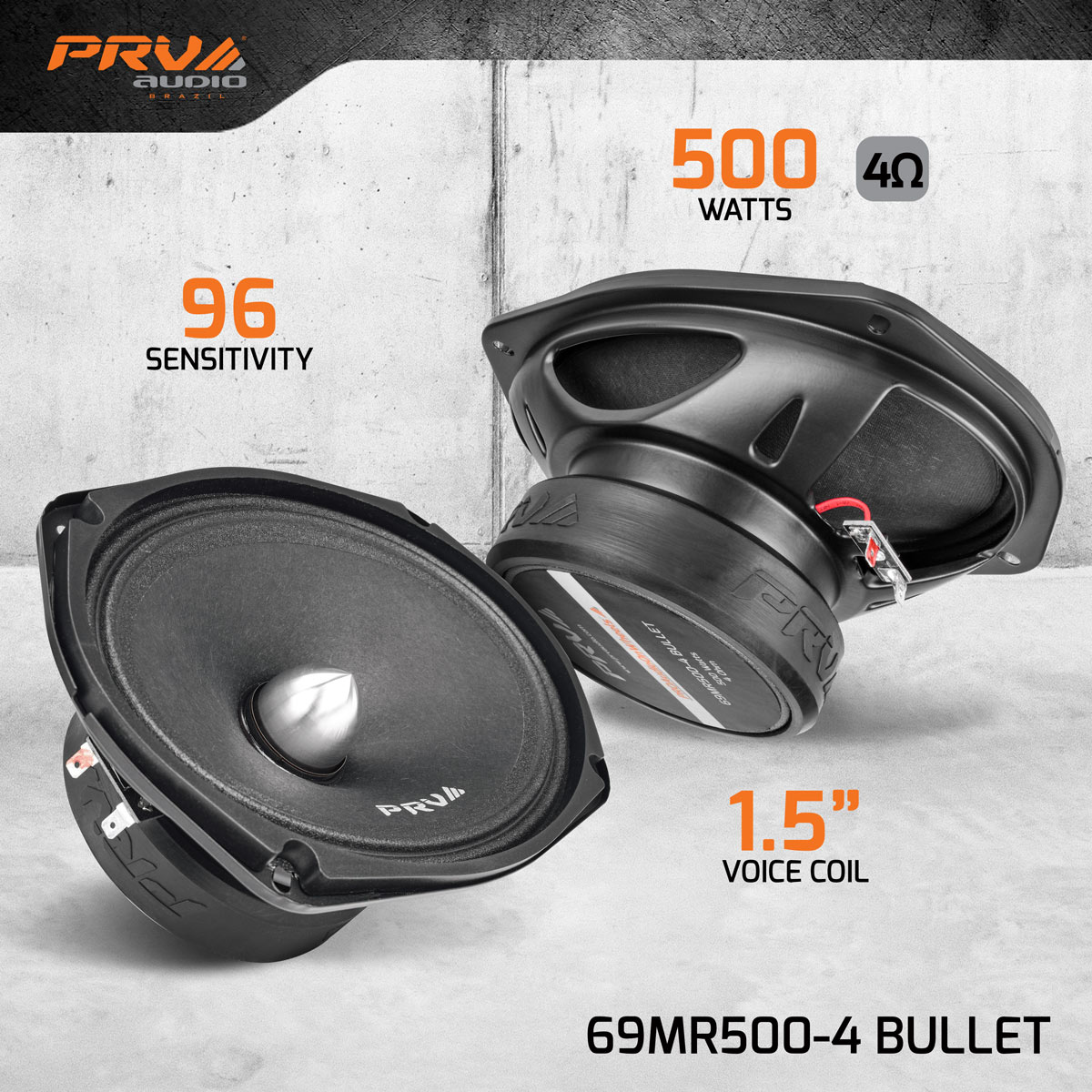

- 500 W RMS continuous program power, 1,000 W peak
- 96 dB sensitivity (2.00V/1m)
- Aluminum bullet phase plug with vented pole piece
- Pressed paper cone with triple-roll cloth surround
- 1.5" CCAW voice coil on a Kapton former
- Sold individually
Specifications are manufacturer rated.
02 Tech specs
By the numbers
RMS Power 01
500W
Continuous rating
Peak Power 02
1,000W
Short-burst rating
Sensitivity 03
96dB
Efficiency
Size 04
1.5in
Nominal
- Impedance
- 4 Ohm
- Continuous Program Power (RMS)
- 500 W
- Max Peak Power
- 1,000 W
- Recommended Hi Pass Crossover
- 145 Hz, 12 dB/octave
- Sensitivity (2.00V at 1m)
- 96 dB
- Frequency Response
- 150 – 12,500 Hz
- Voice Coil Diameter
- 1.5" (38 mm)
- Voice Coil Wire
- CCAW
- Former Material
- Kapton
- Frame Material
- Stamped steel

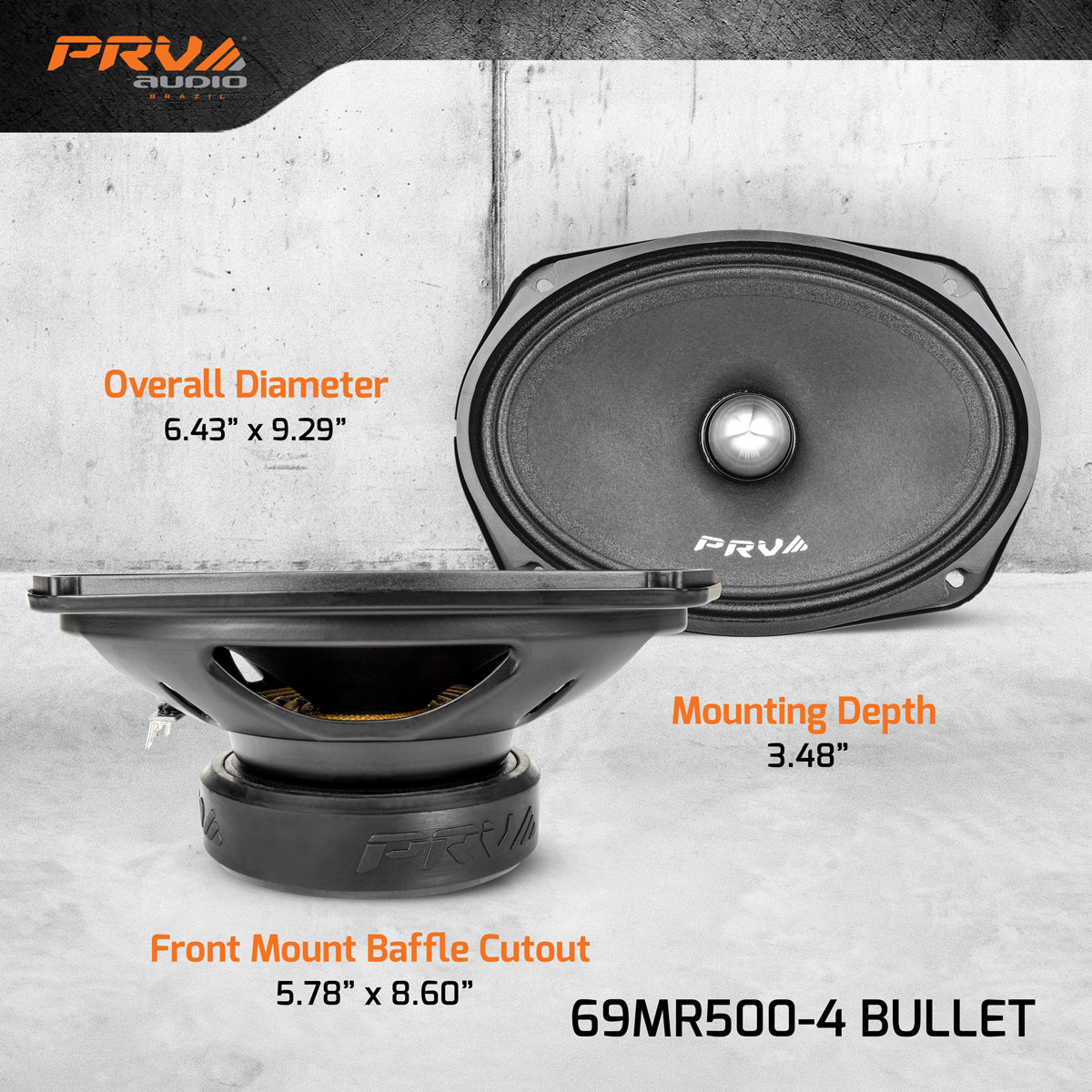

- Mounting Depth
- 3.48" (88.5 mm)
- Cutout
- 5.78" x 8.60" (150 x 218.5 mm)
- Overall Dimensions
- 6.43" x 9.29" (163.5 x 236 mm), 3.85" (98 mm) deep
- Net Weight
- 4.4 lbs (2.00 kg)
- Weight
- 5.35 lbs
- Dimensions
- 10 × 7 × 4.25 in
