DS18

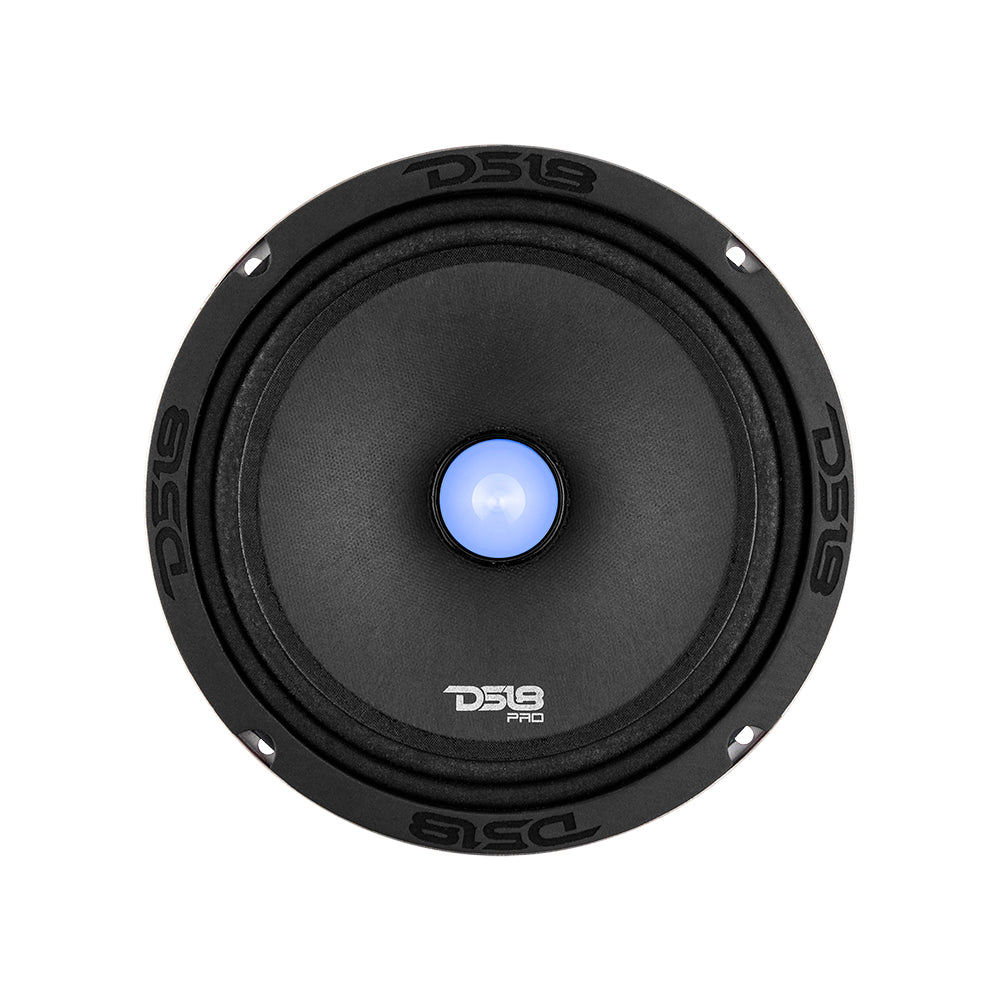

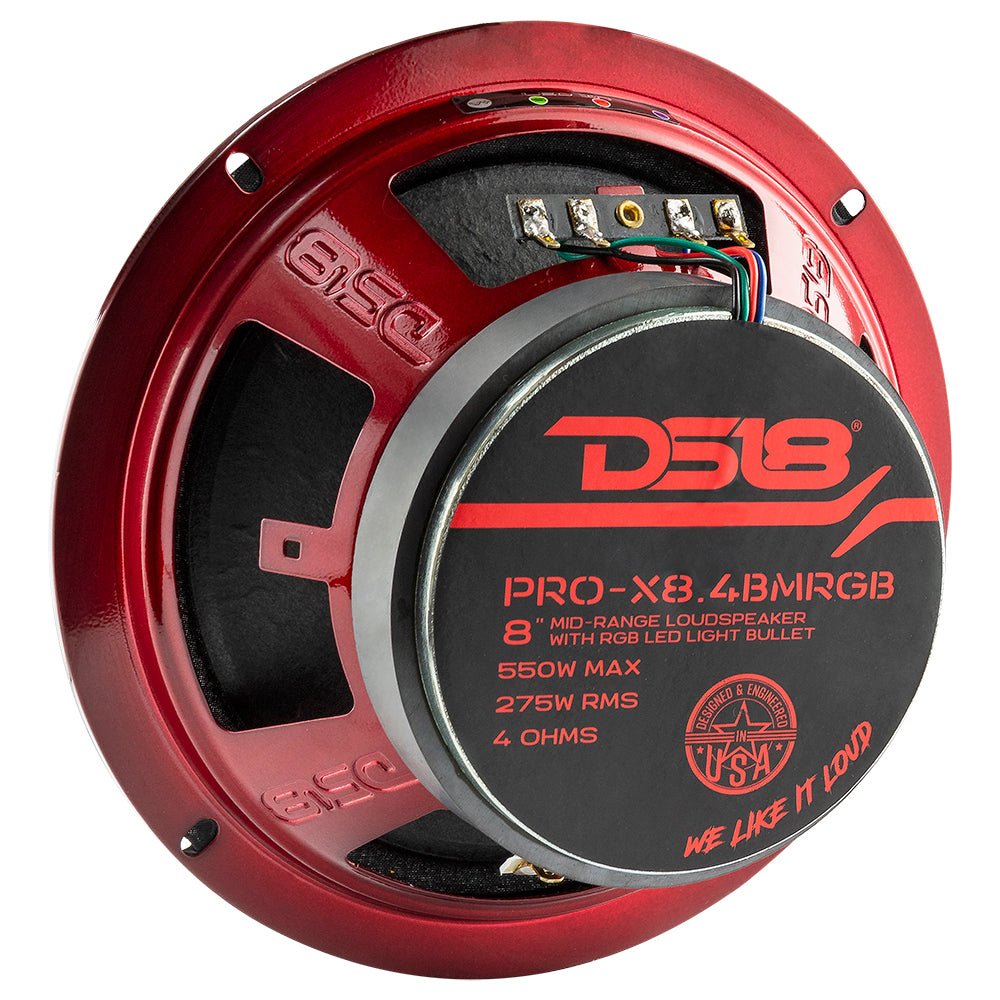

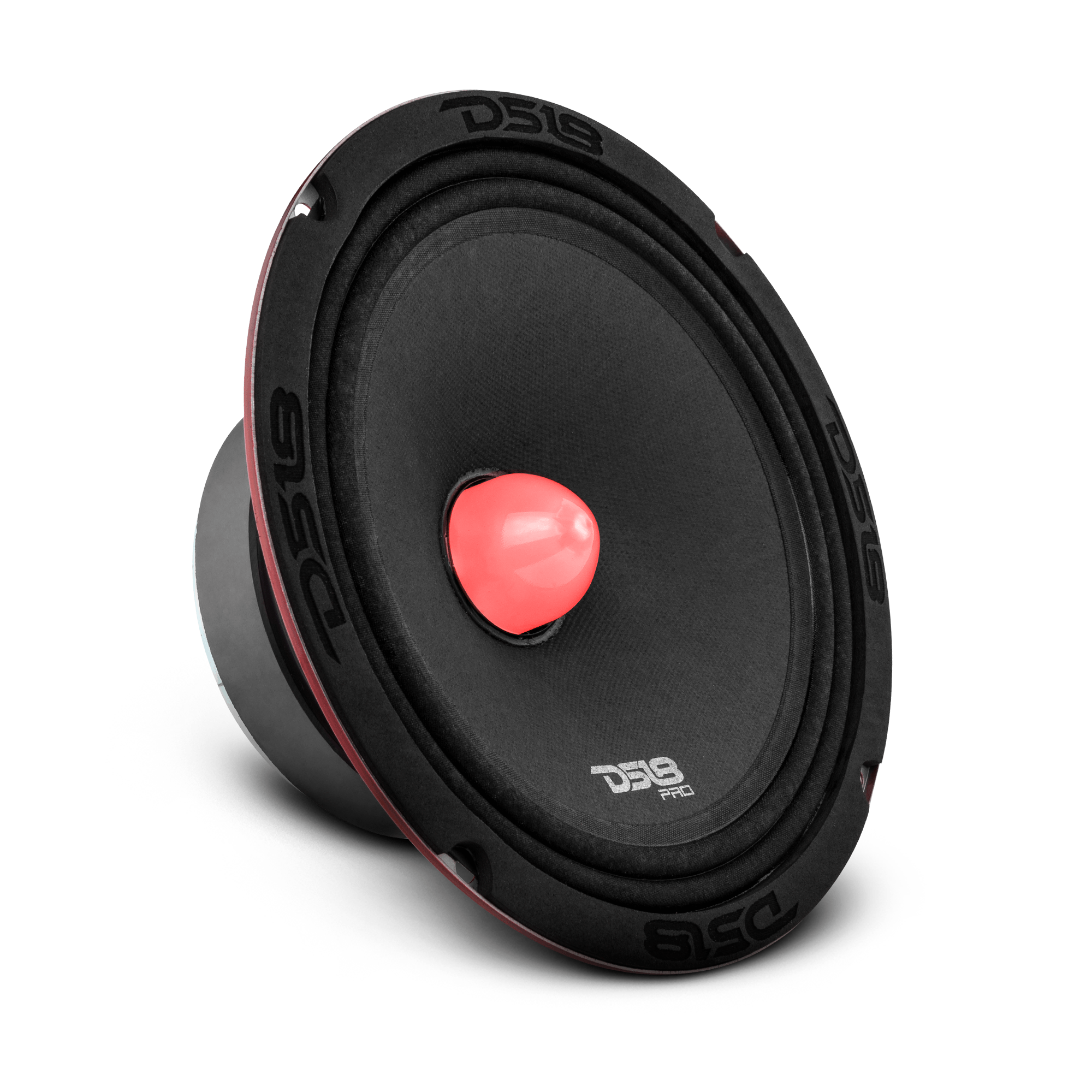

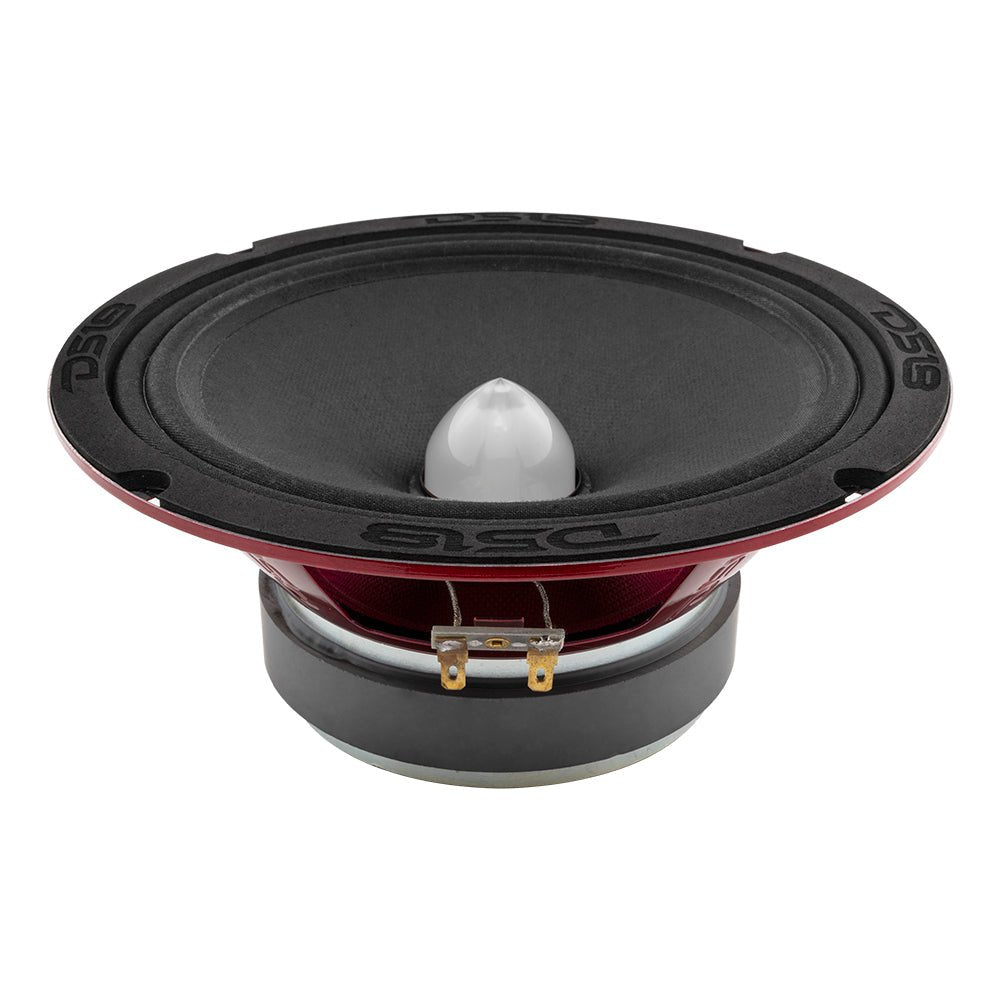

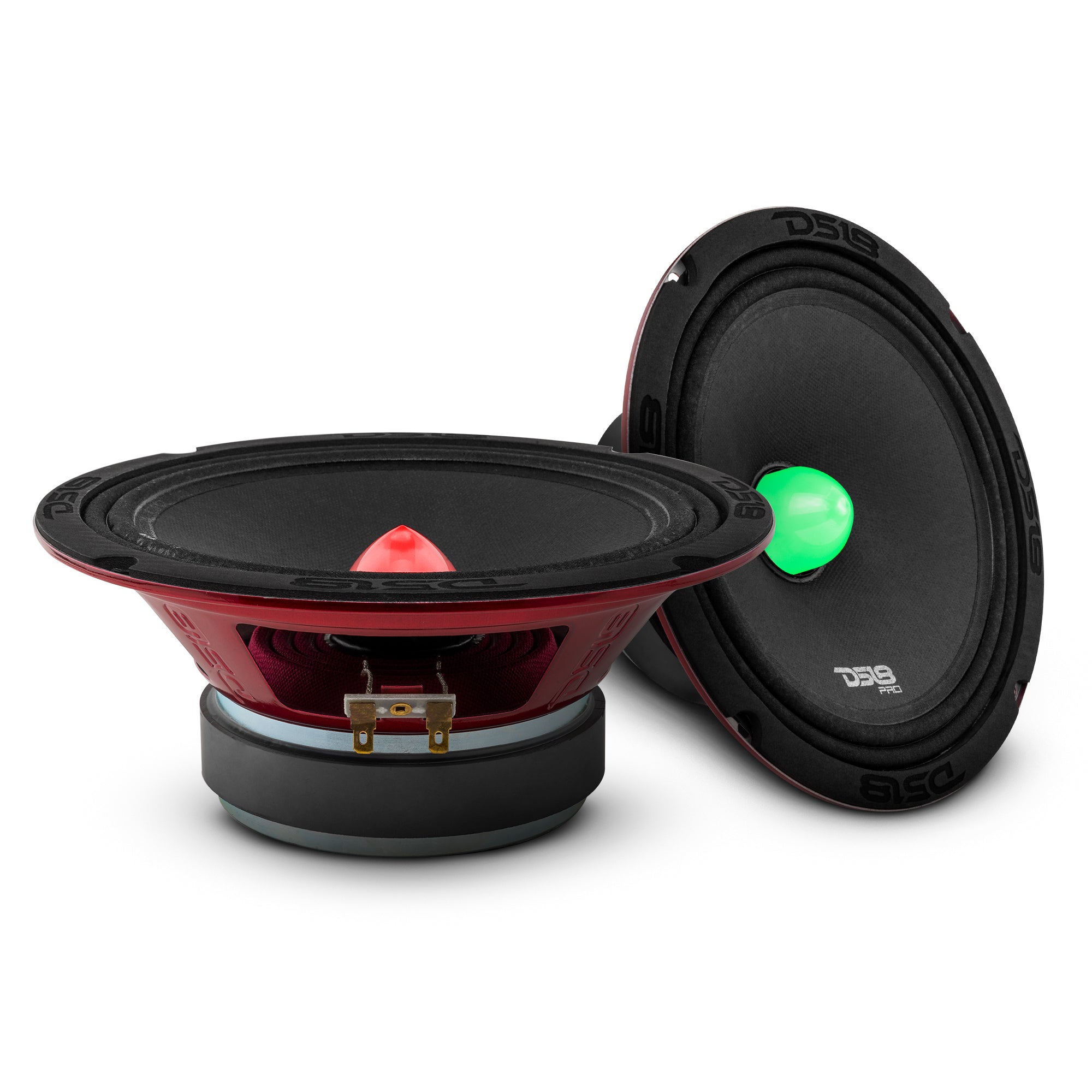

DS18 PRO-X8.4BMRGB PRO-X 8″ Mid-Range Loudspeaker with RGB Light Bullet 275 Watts Rms 4-Ohm
$77.95
DS18 is always innovating and dominating on the pro audio scene.
- Nominal Diameter: 8
- RMS Power Handing: 275w
- MAX Power Handing: 550w
- Nominal Impedance: 4 Ohms
- Frequency Response: 125Hz-16KHz
- Sensitivity (1w/1m): 96dB
RMS Power275W
Peak Power550W
Xmax9.3mm
01 Overview
The details
Product Overview
DS18 is always innovating and dominating on the pro audio scene. The newest addition to our pro audio RGB line is the extremely loud PRO-X8.4BMRGB . This amazing speaker shares all the characteristics of our very popular PRO-X8.4BM but with some added flair which is the full RGB bullet tweeter. This speaker comes in at 275w RMS and 550w Peak power with a 96db sensitivity so you will have no problem getting loud easily. The added RGB will bring that added flair and ambience aesthetic to match your mood or color scheme.
Technical Details Download PRO-X8.4BMRGB Product Manual
02 Tech specs
By the numbers
RMS Power 01
275W
Continuous rating
Peak Power 02
550W
Short-burst rating
Xmax 03
9.3mm
One-way excursion
Sensitivity 04
96dB
Efficiency
Excursion
Scale 0 to 12mmXMAX 9.3MM
- Nominal Impedance
- 4 Ohms
- RMS Power Handing
- 275w
- MAX Power Handing
- 550w
- Recommended HI Pass Crossover
- 120 Hz
- Sensitivity (1w/1m)
- 96dB
- Frequency Response
- 125Hz-16KHz
- Excursion (one way)
- Xmax 9.3mm
- Free Air Resonance
- Fs 114Hz
- BL Factor
- BL 6.945
- Xmax
- 9.3 mm
- Voice Coil Diameter
- 38.6mm / 1.5"
- Voice Coil Former Material
- Kapton
- Winding Material
- CCAW
- Cone Material
- Paper
- Bullet Material
- Translucid ABS with RGB LED
- Surround Material
- Cloth
- Basket Material
- Steel
- Magnet Material
- Ferrite
- Magnet Weight
- 30 Oz
- Voice Coil Inductance
- Le 5.31mH
- Cone Area
- Sd 213.82 cm2
- Motor Diameter
- 4.72" / 120mm
- Nominal Diameter
- 8
- Displacement Volume
- 0.046L
- Equivalent Volume
- Vas 7.1226L
- Overall Diameter
- 8.19" / 208mm
- Overall Depth
- 3.42" / 87mm
- Front Mount Baffle Cutout
- 7.16" / 182mm
- Mounting Depth
- 3.18" / 81mm
- Mechanical Factor
- Qms 9.052
- Electrical Factor
- Qes 0.877
- Total Factor
- Qts 0.8
- Mechanical Mass
- Mms 17.699g
- Mechanical Compliance
- Cms 0.11 m/N
- CD Resistance
- Re 3.2 ohms
