Description
Product Overview

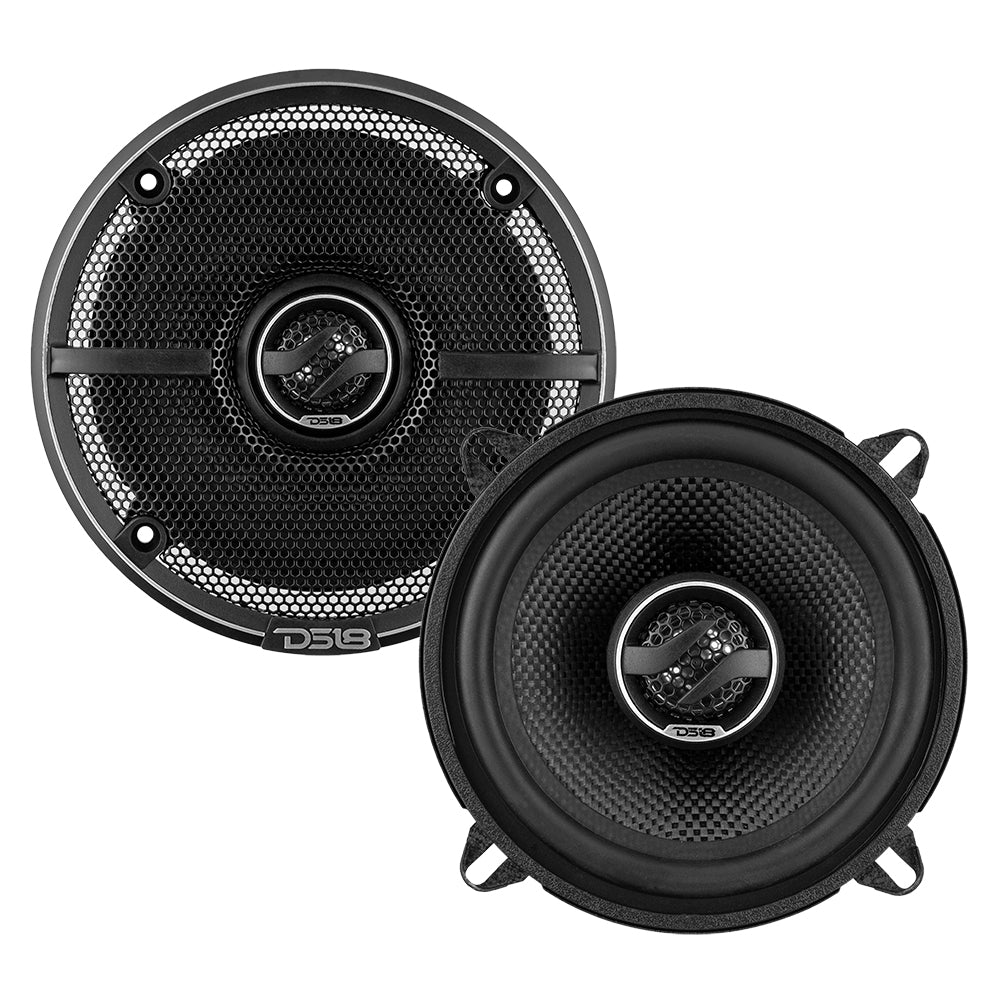

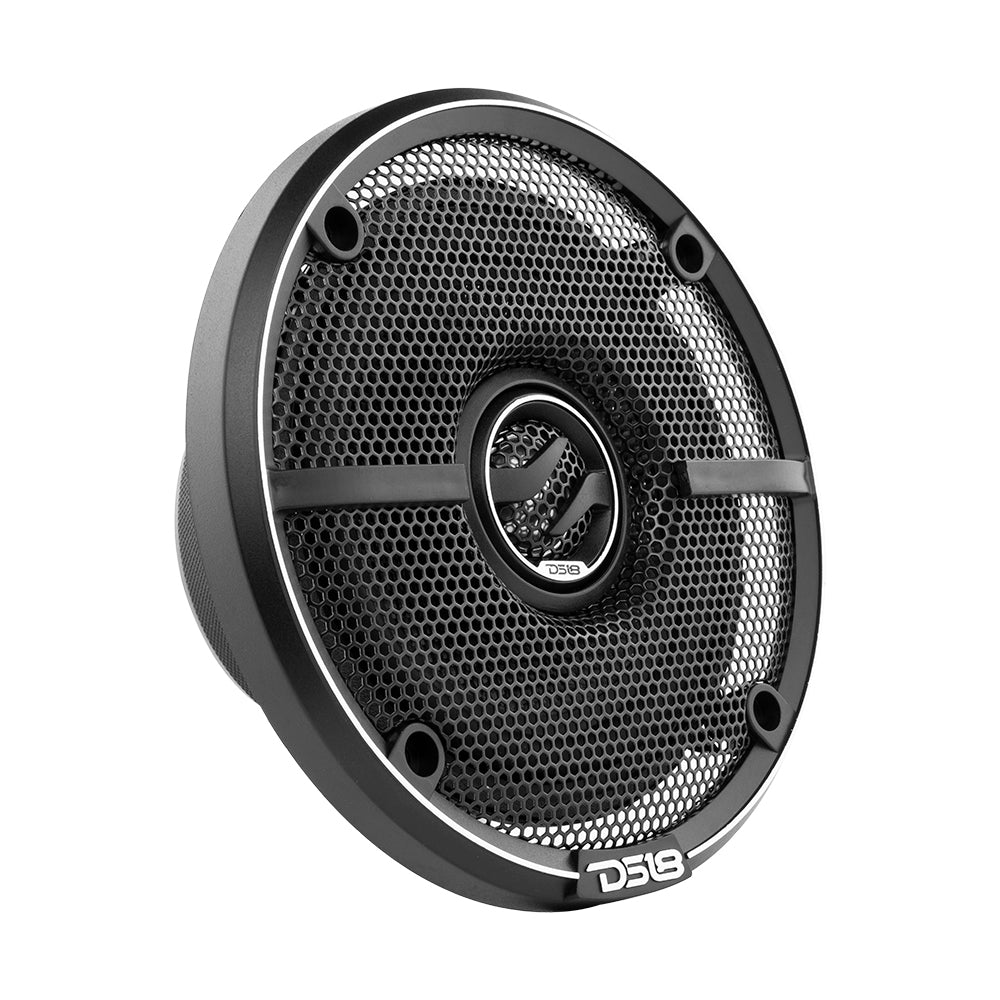

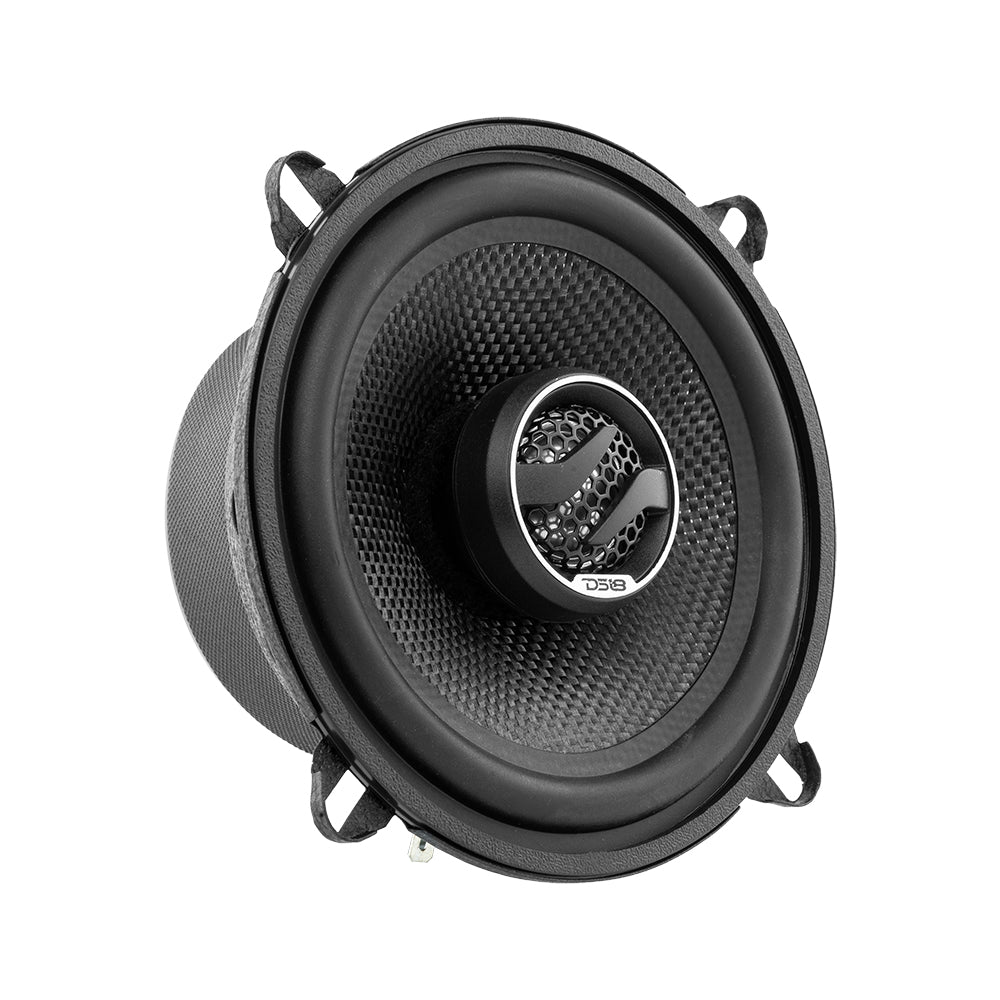

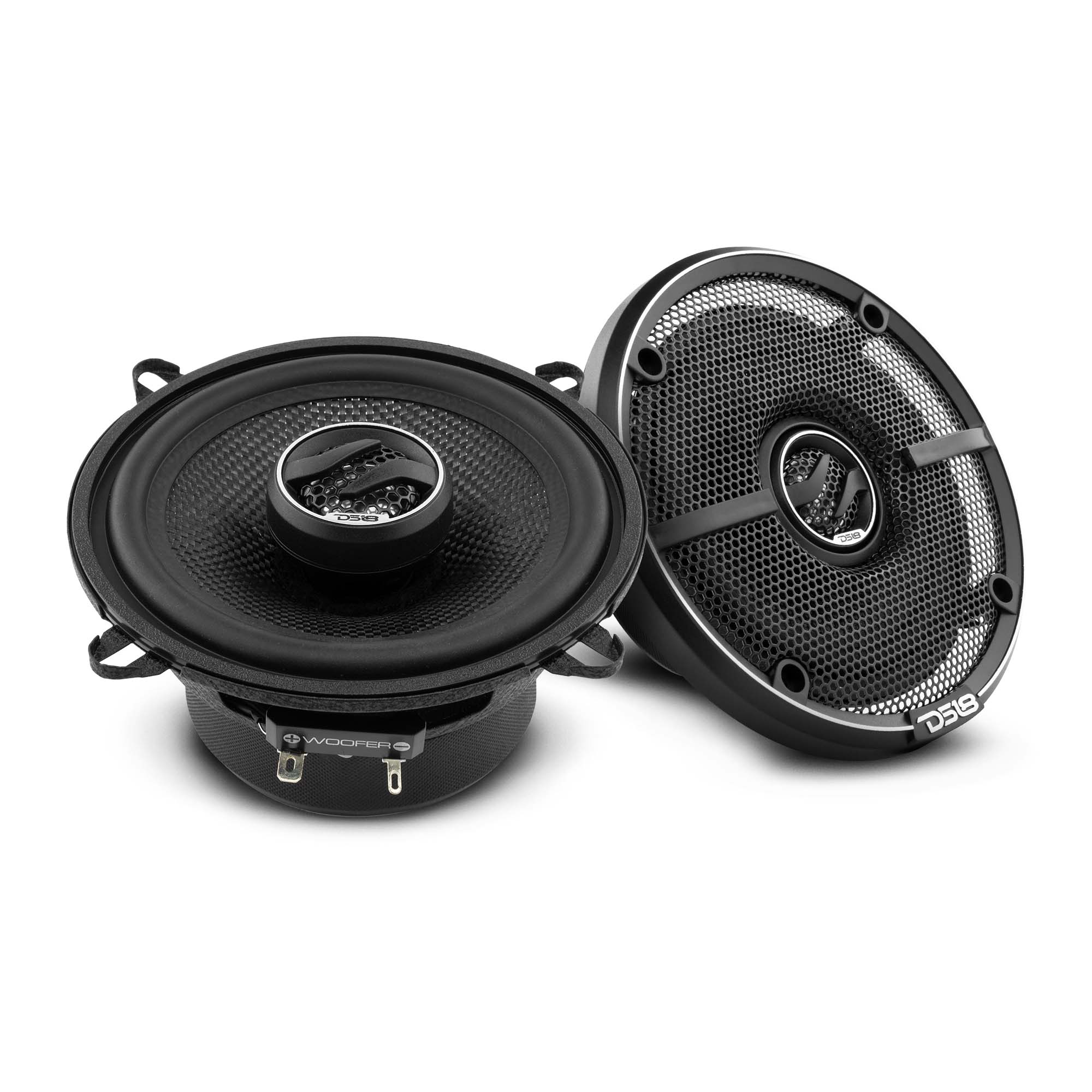

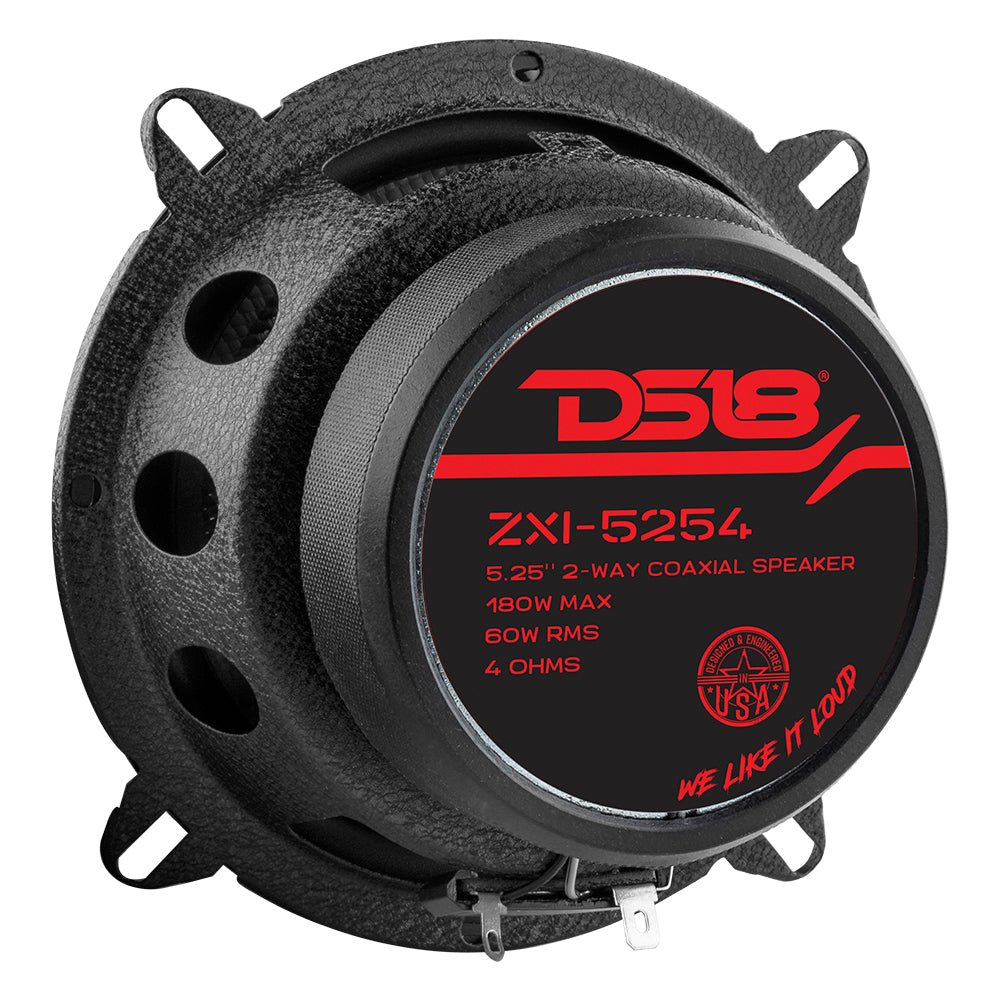

The ZXI series is the go to DS18 line for great sounding audio that not only has very high volume, but also amazing sound quality for an amazing price. The ZXI-5254 is 5.25″ inch, 4 ohm coaxial speaker designed for mid tier audio enthusiasts to the extreme as they have an amazing range of frequencies and loudness. The 2- way design will ensure that you receive a full range of frequencies for an audio experience that you will truly remember.
Highlights
Technical Details Download ZXI-5254 Product Manual
Technical Data
| Specification | Details |
|---|---|
| RMS Power | 60 Watts RMS |
| Impedance | 4 Ohms |
| Frequency Response | 40Hz-20KHz |
| Nominal Diameter | 1″ / 25.4mm |
| Nominal Impedance | 4 ohms |
| RMS Power Handling | 60 Watts |
| MAX Power Handling | 180 Watts |
| Sensitivity (1w/1m) | 89dB |
| Recommended HI Pass Crossover | 60Hz |
| Speaker Type | 2-Way |
| Voice Coil Diameter | 0.8″ / ø20.4mm |
| Voice Coil Former Material | KSV |
| Winding Material | EISVM |
| Cone Material | Glass fiber |
| Surround Material | Rubber |
| Basket Material | Steel |
| Magnet Material. | Neodymium |
| Magnet Weight | 0.3 oz / 8.5g |
| Diaphragm Material | PEI |
| Equivalent Volume | 4.86L |
| Excursion (one way) | 2.3mm |
| Free Air Resonance | 77Hz |
| Mechanical Factor | 8.39 |
| Electrical Factor | 0.87 |
| Total Factor | 0.79 |
| Mechanical Mass | 9.93g |
| Mechanical Compliance | 457mm/N |
| BL Factor | 4.321 |
| Cone Area | 86.5cm2 |
| DC Resistance | 3.5 ohm |
| Mechanical Mass w/o air | 9.0g |
| Overall Diameter | 5.08” / 129mm |
| Overall Depth | 2.80” / 71mm |
| Front Mount Baffle Cutout | 4.45” / 113mm |
| Mouting Depth | 2.28” / 58mm |
| Motor Diameter | 3.31” / 84mm |
